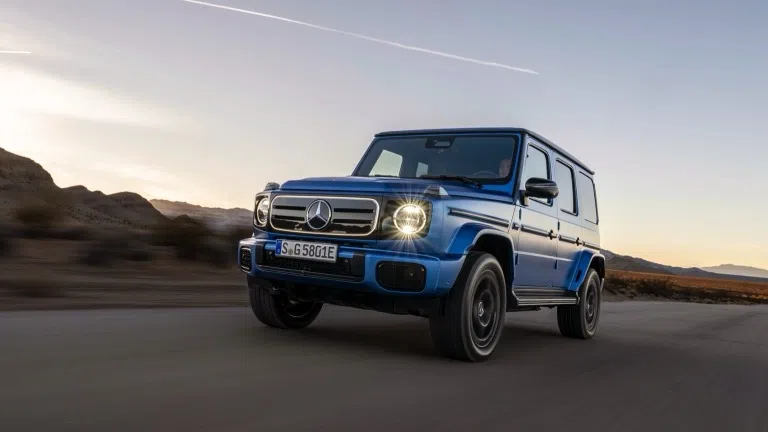

Mercedes-Benz G 580 2024

Usable battery
116 kWh
Nominal battery
124 kWh
Drive
AWD
Real range (combined)
385 km
AC charging
11 kW
DC fast charging
200 kW

Ownership insights

Commute: 385 km real-world range | longer home charging sessions

Road-trip (10-80%): 30 min | +115 km in 10 min | peak 200 kW

Home charging (AC): 11 kW | 0-100% 12 h 0 min

Seats & cargo: 5 seats | 555 L | max 1990 L

Overview

Mercedes-Benz G 580 2024 overview

In this trim, Mercedes-Benz G 580 2024 is an electric SUV with AWD and a 5-seat cabin. This trim trades efficiency for performance/size (29 kWh/100 km, much higher than the class median of 17.9 kWh/100 km).

Battery capacity: 116 kWh usable (124 kWh nominal). WLTP range: 434-473 km.

Charging: AC up to 11 kW (Type 2); DC up to 200 kW (CCS Combo 2). For DC fast charging, it adds ~115 km in 10 min; Battery preconditioning supports navigation-based routing.

Class comparison

Within a group of 503 SUVs, Mercedes-Benz G 580 2024 leans toward higher energy use and a larger usable battery. Official energy use is higher than the class median; 29 kWh/100 km vs 17.9 kWh/100 km; 11.1 kWh/100 km higher, +62%. Usable battery capacity is above the class median; 116 kWh vs 77 kWh; 39 kWh higher, +51%. Peak DC power is above the class median; 200 kW vs 150 kW; 50 kW higher, +33%. A strong match for more usable battery capacity and higher peak DC power, with higher energy use as the main trade-off.

Real Range

City - Mild Weather	548 km
City - Cold Weather	370 km
Highway - Mild Weather	351 km
Highway - Cold Weather	270 km

Real range estimates The values shown here are estimates calculated by BEV-Database using WLTP data and the usable battery capacity of the car. Mild weather represents driving in roughly +20 +25 C without heavy use of climate control, while Cold weather reflects winter conditions with cabin heating. Highway assumes steady cruising at about 110 km/h. These figures are not official test results. Real-world range will vary depending on speed, temperature, traffic, road profile, payload, tyres and driving style.

Have questions?

Battery

Nominal Capacity	124 kWh
Usable Capacity	116 kWh
Battery Type	Lithium-ion
Architecture	400 V
Warranty Period	No Data
Warranty Mileage	No Data
Cathode Material	No Data

Source: Manufacturer

Have questions?

Charging

Home / Destination

Charging Type	Type 2
Port Location	Rear Right
Charge Power	11 kW
Charge Time AC (0-100%)	12 h 0 min
Charge Speed (mild)	40 km/h
Charge Speed (cold)	30 km/h

Fast Charging

Fast Charging Port	CCS Combo 2
Port Location	Rear Right
Charge Power (max)	200 kW
Charge Power (10-80%)	150 kW
Charge Time DC (10-80%)	30 min
Charge Speed (mild)	550 km/h
Charge Speed (cold)	400 km/h
Autocharge Supported	Yes

Plug & Charge

Plug & Charge Supported	No Data
Supported Protocol	No Data

Preconditioning

Preconditioning Possible	Yes
Automatically using Navigation	Yes

Have questions?

Performance

Acceleration	4.7 sec (0-100 km/h)
Top Speed	180 km/h
Total Power	432 kW (587 PS)
Total Torque	1164 Nm
Consumption	29 kWh/100 km
Drive	AWD

Have questions?

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L Supported	No
Max. Output Power	-
Exterior Outlet(s)	-
Interior Outlet(s)	-

Vehicle-to-Home (V2H)

V2H via AC Supported	No
Max. Output Power	-
V2H via DC Supported	No
Max. Output Power	-

Vehicle-to-Grid (V2G)

V2G via AC Supported	No
Max. Output Power	-
V2G via DC Supported	No
Max. Output Power	-

Have questions?

Energy Consumption

BEVDB model

Combined real range (estimate)	385 km
Combined Energy Use (estimate)	29 kWh/100 km

BEVDB estimates use WLTP-rated (or derived) consumption and usable battery capacity to model city/highway ranges; the combined value averages the four scenarios.

WLTP Ratings (best case)

Range	473 km
Rated Consumption	27.7 kWh/100 km

WLTP Ratings (worst case)

Range	434 km
Rated Consumption	30.3 kWh/100 km

Have questions?

Safety (NCAP)

Safety Rating	No Data
Adult Occupant	No Data
Child Occupant	No Data
Rating Year	No Data
Vulnerable Road Users	No Data
Safety Assist	No Data

Source: Euro NCAP

Have questions?

Dimensions and Weight

Length	4624 mm
Width	1931 mm
Width with Mirrors	No Data
Height	1986 mm
Wheelbase	2890 mm
Weight Unladen (EU)	3085 kg
Gross Vehicle Weight (GVWR)	3500 kg
Max. Payload	490 kg
Cargo Volume	555 L
Cargo Volume Max	1990 L
Cargo Volume Frunk	0 L
Roof Load	0 kg
Tow Hitch Possible	No
Towing Weight Unbraked	0 kg
Towing Weight Braked	0 kg
Vertical Load Max	0 kg

Have questions?

Miscellaneous

Seats	5 people
Isofix	Yes, 2 seats
Turning Circle	13.6 m
Platform	No Data
EV Dedicated Platform	No
Car Body	SUV
Roof Rails	No
Heat Pump	No Data
HP Standard Equipment	No Data

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions.
