Chevrolet Bolt EV 2017

Starting price: $36,620

SpecificationRoad PlannerMoney EconomyGarage Planner

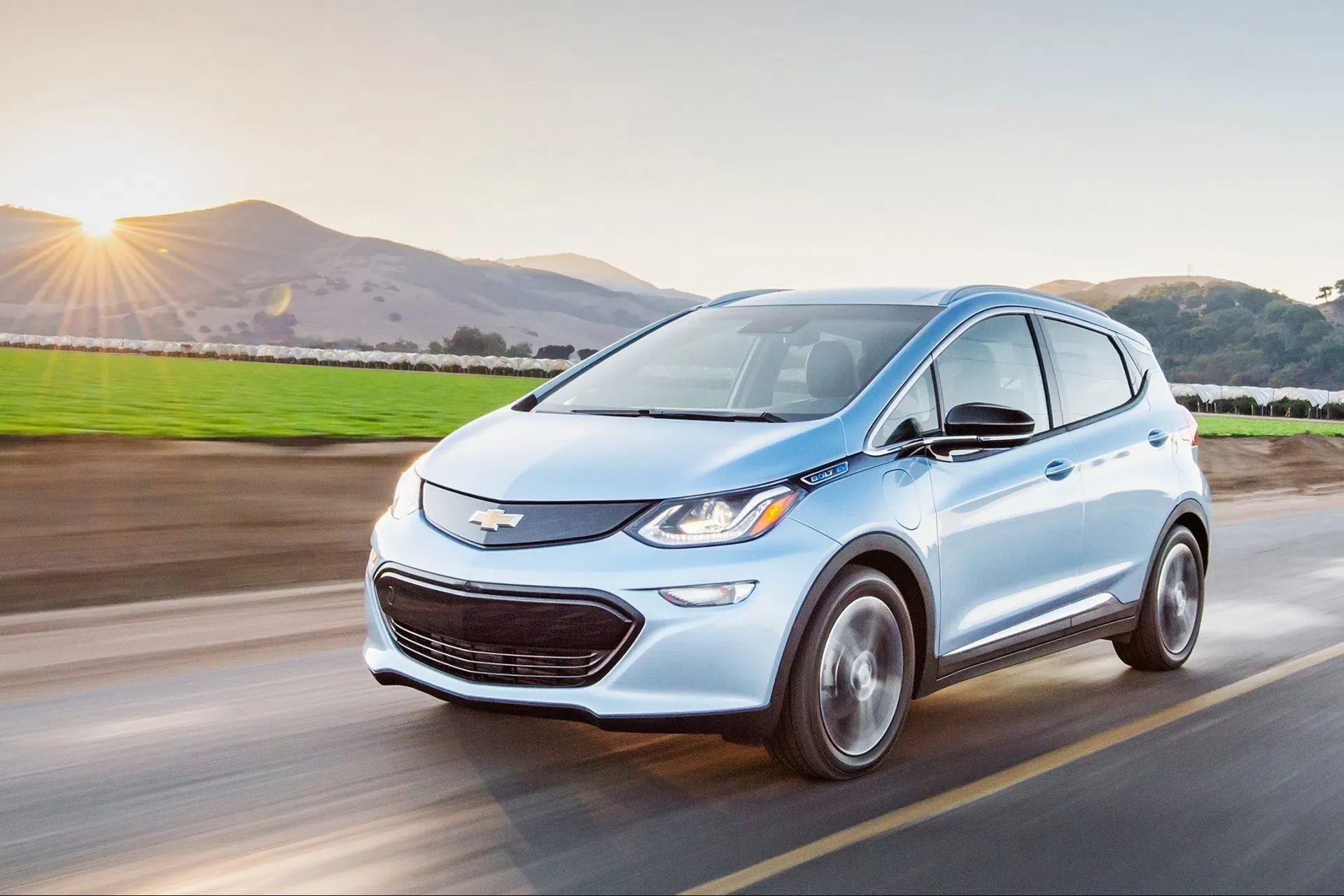

Chevrolet Bolt EV 2017 image 1

Ownership insights

Commute: 213 mi real-world range | longer home charging sessions

Road-trip (10-80%): 55 min (est.) | +36 mi in 10 min | peak 55 kW

Home charging (AC): 7.2 kW | 0-100% 9 h 30 min

Seats & cargo: 5 seats | 16.9 cu ft | max 56.6 cu ft

Battery warranty: 8 years / 100,000 miles

Overview

Chevrolet Bolt EV 2017 overview

Official EPA range is 238 mi, with 60 kWh usable battery, DC up to 55 kW (CCS Combo 1) and typical 10-80% stops near 57 min (est.). Chevrolet Bolt EV 2017 is an electric hatchback with FWD and 5 seats.

Real-world estimate (BEVDB model, est.): 160 miles (cold highway) and 262 miles (mild city). A 10-minute DC top-up (est.) adds 36 miles. Combined efficiency is 119 MPGe, or about 28 kWh/100 mi.

Daily driving and shorter weekend trips should feel easy, though longer highway journeys need more patience at chargers.

City - Mild Weather262 miles
City - Cold Weather176 miles
Highway - Mild Weather202 miles
Highway - Cold Weather160 miles

Estimates of actual range. The values given here are BEVDB estimates calculated from EPA data and usable battery capacity, based on the BEVDB model. The BEVDB real-range card uses four fixed reference scenarios: City (Mild), Highway (Mild), City (Cold), and Highway (Cold). Mild means +20°C (70°F) without intensive climate-control use; cold means -10°C (14°F) with cabin heating. City speed is 50 km/h (30 mph), and highway speed is 110 km/h (70 mph). These figures are not official test results. Actual range will vary depending on speed, temperature, road conditions, road profile, load, tires, and driving style.

Have questions about Real Range?
Nominal Capacity60 kWh
Usable Capacity60 kWh
Battery TypeLithium-ion
ArchitectureNo Data
Warranty Period8 years
Warranty Mileage100000 miles
Cathode MaterialNCM

Note: Nominal and usable capacities match, so a more precise usable value was not available.

Source: Manufacturer

Have questions about Battery?

Home / Destination

Charging TypeJ1772J1772 icon
Port LocationFront Left
Charge Power7.2 kW
Charge Time AC (0-100%)9 h 30 min
Charge Speed (mild)10 miles/hour
Charge Speed (cold)10 miles/hour

Fast Charging

Fast Charging PortCCS Combo 1CCS Combo 1 icon
Port LocationNo Data
Charge Power (max)55 kW
Charge Power (10-80%)44 kW
Charge Time DC (10-80%)57 min
Charge Speed (mild)100 miles/hour
Charge Speed (cold)80 miles/hour
Autocharge SupportedNo Data

Plug & Charge

Plug & Charge SupportedNo Data
Supported ProtocolNo Data

Preconditioning

Preconditioning PossibleNo Data
Automatically using NavigationNo Data
Have questions about Charging?

Home / destination charging — 0–100%

AC full charge: fastest ~9h 30m
Charging optionPower usedApprox. timeRange per hourNotes
Level 1 · 120V / 12A1.4 kW48h 40m3 mi/h—
Level 1 · 120V / 16A1.9 kW35h 55m4 mi/h—
Level 2 · 240V / 32A7.2 kW9h 30m15 mi/hLimited by vehicle
Level 2 · 240V / 40A7.2 kW9h 30m15 mi/hLimited by vehicle
Level 2 · 240V / 48A7.2 kW9h 30m15 mi/hLimited by vehicle

Fast charging — 10–80%

Fastest DC 10–80%: ~57 min
Charging optionPower usedApprox. timeRange per hourNotes
DC 50+ kWCCS connector44 kW avg.57 min103 mi/hVehicle-limited above 50 kW

Fast-charging times may use BEVDB estimates when measured 10–80% data is unavailable. Lower-power charger scenarios are estimated from the vehicle's 10–80% charging profile.

Estimated charging times are based on usable battery capacity, charging power and vehicle charging limits. Peak DC power is usually reached only briefly; average 10–80% power is more useful for estimating real charging time. Actual charging speed can vary by charger output, battery temperature, state of charge, weather, software and battery condition.

Acceleration6.5 sec (0-60 mph)
Top Speed91 mph
Total Power150 kW (204 PS)
Total Torque265.5 lb-ft
EPA Consumption28 kWh/100 mi
DriveFWD
Have questions about Performance?

Vehicle-to-Load (V2L)

V2L SupportedNo Data
Max. Output PowerNo Data
Exterior Outlet(s)No Data
Interior Outlet(s)No Data

Vehicle-to-Home (V2H)

V2H via AC SupportedNo Data
Max. Output PowerNo Data
V2H via DC SupportedNo Data
Max. Output PowerNo Data

Vehicle-to-Grid (V2G)

V2G via AC SupportedNo Data
Max. Output PowerNo Data
V2G via DC SupportedNo Data
Max. Output PowerNo Data
Have questions about Bidirectional Charging?

BEVDB model

Combined real range (estimate)212.5 miles
Combined Energy Use (estimate)28.1 kWh/100 mi

BEVDB estimates use EPA-rated (or derived) consumption and usable battery capacity to model city/highway ranges; the combined value is a weighted mix of city/highway and mild/cold scenarios. See the methodology and data sources for inputs, official source boundaries, fallback rules, and versioning.

EPA

EPA Range238 mi
MPGe City128 MPGe
MPGe Highway110 MPGe
MPGe Combined119 MPGe
Energy Use28 kWh/100 mi

Source: EPA

Have questions about Energy Consumption?
Side crash:5/5
Front crash:5/5
Rollover resistance:10.9%
Safety rating:5/5
Rating year:2017

Source: NHTSA

Have questions about Safety?
Length164 in
Width69.5 in
Width with Mirrors80.3 in
Height62.8 in
Wheelbase102.4 in
Weight3562.7 lbs
Gross Vehicle Weight (GVWR)No Data
Max. PayloadNo Data
Cargo Volume16.9 ft³
Cargo Volume Max56.6 ft³
Cargo Volume FrunkNo Data
Roof LoadNo Data
Tow Hitch PossibleNo
Towing Weight UnbrakedNo Data
Towing Weight BrakedNo Data
Vertical Load MaxNo Data
Have questions about Dimensions and Weight?
Price$36,620
Seats5
LATCHNo Data
Turning Circle35.4 ft
PlatformBEV II
EV Dedicated PlatformYes
Car BodyHatchback
Roof RailsNo Data
Heat PumpNo Data
HP Standard EquipmentNo Data

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions. Review the BEVDB methodology for estimate boundaries and source labels. If this model page looks wrong, use Contact and include this page URL plus an official source link when possible.
