Volvo EX90 Single Motor 2023

Starting price: €96,500

SpecificationRoad PlannerMoney EconomyGarage Planner

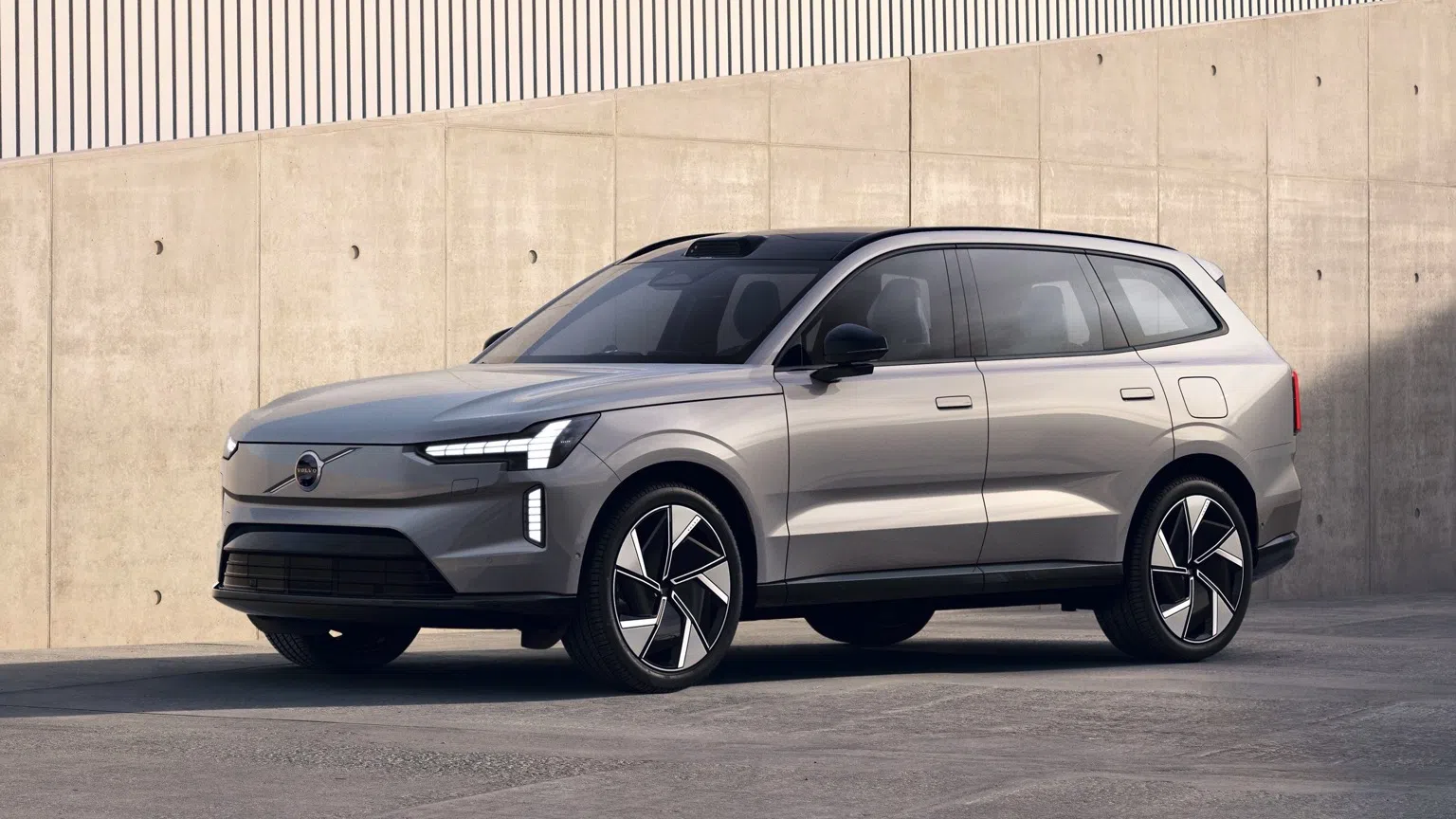

Volvo EX90 Single Motor 2023 image 1

Ownership insights

Commute: 477 km real-world range | longer home charging sessions

Road-trip (10-80%): 30 min | +209 km in 10 min | peak 250 kW

Home charging (AC): 11 kW | 0-100% 10 h 25 min

Seats & cargo: 7 seats | 310 L | max 1915 L

Battery warranty: 8 years / 160,000 km

Overview

Volvo EX90 Single Motor 2023 overview

Official WLTP range is 580 km, with 101 kWh usable battery, DC up to 250 kW and typical 10-80% stops near 30 min (est.). Volvo EX90 Single Motor 2023 is an electric SUV with RWD and 7 seats.

A 10-minute DC top-up (est.) adds 209 km. Energy use is 19.9 kWh/100 km.

Well-suited to long-distance touring with minimal downtime at chargers. Battery preconditioning supports navigation-based routing.

City - Mild Weather592 km
City - Cold Weather437 km
Highway - Mild Weather449 km
Highway - Cold Weather371 km

Estimates of actual range. The values given here are BEVDB estimates calculated from WLTP data and usable battery capacity, based on the BEVDB model. The BEVDB real-range card uses four fixed reference scenarios: City (Mild), Highway (Mild), City (Cold), and Highway (Cold). Mild means +20°C (70°F) without intensive climate-control use; cold means -10°C (14°F) with cabin heating. City speed is 50 km/h (30 mph), and highway speed is 110 km/h (70 mph). These figures are not official test results. Actual range will vary depending on speed, temperature, road conditions, road profile, load, tires, and driving style.

Have questions about Real Range?
Nominal Capacity104 kWh
Usable Capacity101 kWh
Battery TypeLithium-ion
Architecture400 V
Warranty Period8 years
Warranty Mileage160000 km
Cathode MaterialNCM

Source: Manufacturer

Have questions about Battery?

Home / Destination

Charging TypeType 2Type 2 icon
Port LocationRear Left
Charge Power11 kW
Charge Time AC (0-100%)10 h 25 min
Charge Speed (mild)50 km/h
Charge Speed (cold)40 km/h

Fast Charging

Fast Charging PortCCS Combo 2CCS Combo 2 icon
Port LocationRear Left
Charge Power (max)250 kW
Charge Power (10-80%)140 kW
Charge Time DC (10-80%)30 min
Charge Speed (mild)710 km/h
Charge Speed (cold)570 km/h
Autocharge SupportedNo Data

Plug & Charge

Plug & Charge SupportedLimited
Supported ProtocolISO 15118-2

Preconditioning

Preconditioning PossibleYes
Automatically using NavigationYes
Have questions about Charging?

Home / destination charging — 0–100%

AC full charge: fastest ~10h 25m
Charging optionPower usedApprox. timeRange per hourNotes
Wall plug · 230V / 10A2.3 kW49h 55m10 km/h—
1-phase 16A · 230V / 16A3.7 kW31h16 km/h—
1-phase 32A · 230V / 32A7.4 kW15h 30m33 km/h—
3-phase 16A · 400V / 3x16A11 kW10h 25m49 km/h—
3-phase 32A · 400V / 3x32A11 kW10h 25m49 km/hLimited by vehicle

Fast charging — 10–80%

Fastest DC 10–80%: ~30 min
Charging optionPower usedApprox. timeRange per hourNotes
CCS 50 kWCCS connector50 kW avg.1h 25m253 km/h—
CCS 150 kWCCS connector126 kW avg.34 min637 km/hLimited by charger
CCS 350 kWCCS connector140 kW avg.30 min708 km/hLimited by vehicle

Estimated charging times are based on usable battery capacity, charging power and vehicle charging limits. Peak DC power is usually reached only briefly; average 10–80% power is more useful for estimating real charging time. Actual charging speed can vary by charger output, battery temperature, state of charge, weather, software and battery condition.

Acceleration8.4 sec (0-100 km/h)
Top Speed180 km/h
Total Power205 kW (279 PS)
Total Torque490 Nm
WLTP Consumption (combined)19.9 kWh/100 km
DriveRWD
Have questions about Performance?

Vehicle-to-Load (V2L)

V2L SupportedNo Data
Max. Output Power11 kW
Exterior Outlet(s)No Data
Interior Outlet(s)No Data

Vehicle-to-Home (V2H)

V2H via AC SupportedNo Data
Max. Output Power11 kW
V2H via DC SupportedNo Data
Max. Output PowerNo Data

Vehicle-to-Grid (V2G)

V2G via AC SupportedNo Data
Max. Output PowerNo Data
V2G via DC SupportedNo Data
Max. Output PowerNo Data
Have questions about Bidirectional Charging?

BEVDB model

Combined real range (estimate)477 km
Combined Energy Use (estimate)21 kWh/100 km

BEVDB estimates use WLTP-rated (or derived; falls back to NEDC when WLTP is missing) consumption and usable battery capacity to model city/highway ranges; the combined value is a weighted mix of city/highway and mild/cold scenarios. See the methodology and data sources for inputs, official source boundaries, fallback rules, and versioning.

WLTP Ratings

Range580 km
Rated Consumption19.9 kWh/100 km
Have questions about Energy Consumption?
Safety RatingNo Data
Adult OccupantNo Data
Child OccupantNo Data
Rating YearNo Data
Vulnerable Road UsersNo Data
Safety AssistNo Data
Have questions about Safety?
Length5037 mm
Width1964 mm
Width with Mirrors2113 mm
Height1744 mm
Wheelbase2985 mm
Weight Unladen (EU)2637 kg
Gross Vehicle Weight (GVWR)3190 kg
Max. Payload628 kg
Cargo Volume310 L
Cargo Volume Max1915 L
Cargo Volume Frunk37 L
Roof Load100 kg
Tow Hitch PossibleYes
Towing Weight Unbraked750 kg
Towing Weight Braked1200 kg
Vertical Load Max100 kg
Have questions about Dimensions and Weight?
Price€96,500
Seats7
IsofixYes, 4 seats
Turning Circle11.8 m
PlatformVolvo SPA2
EV Dedicated PlatformYes
Car BodySUV
Roof RailsNo
Heat PumpYes
HP Standard EquipmentYes

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions. Review the BEVDB methodology for estimate boundaries and source labels. If this model page looks wrong, use Contact and include this page URL plus an official source link when possible.
