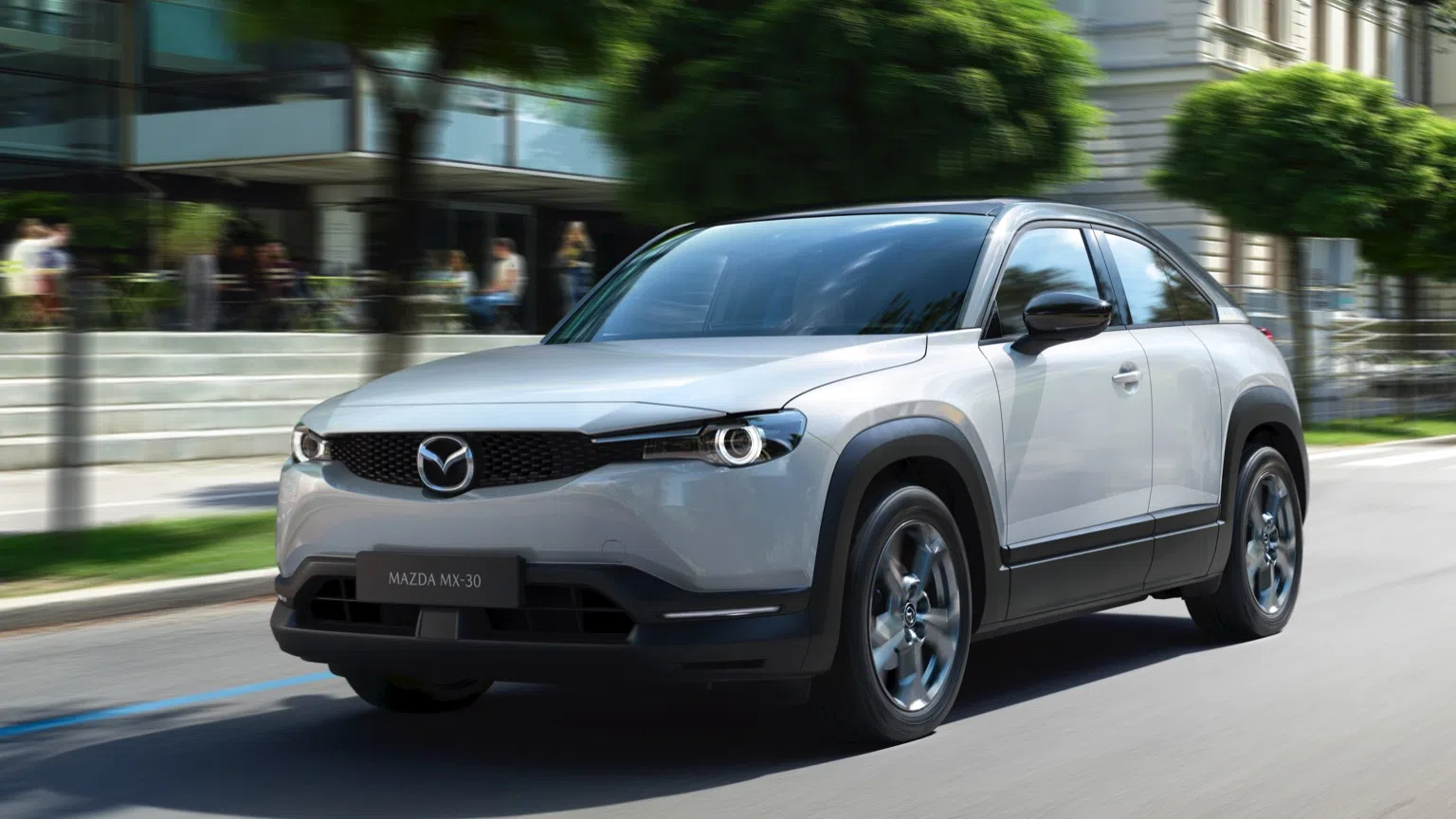

Mazda MX-30 2020

Starting price: €33,490

Specification Road Planner EV Running Cost Calculator EV Garage Planner

Usable battery
30 kWh
Nominal battery
35.5 kWh
Drive
FWD
Real range (combined)
139 km
AC charging
6.6 kW
DC fast charging
37 kW

Ownership summary

Verdict:

Mazda MX-30 2020 works best as a FWD electric SUV for city driving, short commutes and simple home charging. For ownership planning, the key range numbers are not only 200 km official, but also about 139 km mixed and 103 km in cold highway driving.

In daily use, home charging takes about 5 h 10 min from 0-100%; on trips, the 10-80% DC estimate is about 37 min (est.), so highway use needs more patience. The practical side is documented with 5 seats, 366-1171 L cargo and 8 years / 160,000 km battery warranty. The BEVDB mixed estimate is meaningfully below the official range figure. Range confidence is high and the tracked ownership specs are complete.

Best fit

City drivingShort commuteHome chargingFamily use

Main caveatThe BEVDB mixed estimate is meaningfully below the official range figure.

Range reality

Official WLTP range: 200 km
BEVDB mixed estimate: 139 km
Cold highway estimate: 103 km
Official vs BEVDB gap: -61 km / -30%

Charging reality

Home charging: 0-100% 5 h 10 min
Fast charging: 10-80% 37 min (est.)
10-80% range added: 98 km Based on BEVDB combined consumption

Practical ownership

Seats: 5
Cargo: 366-1171 L
Battery warranty: 8 years / 160,000 km

Data quality

Range confidence: High
Specs completeness: Complete
Estimate basis: WLTP data + BEVDB model
Missing key data: None of the tracked key fields

Real Range

City - Mild Weather	183 km
City - Cold Weather	114 km
Highway - Mild Weather	132 km
Highway - Cold Weather	103 km

Estimates of actual range. The values given here are BEVDB estimates calculated from WLTP data and usable battery capacity, based on the BEVDB model. The BEVDB real-range card uses four fixed reference scenarios: City (Mild), Highway (Mild), City (Cold), and Highway (Cold). Mild means +20°C (70°F) without intensive climate-control use; cold means -10°C (14°F) with cabin heating. City speed is 50 km/h (30 mph), and highway speed is 110 km/h (70 mph). These figures are not official test results. Actual range will vary depending on speed, temperature, road conditions, road profile, load, tires, and driving style.

Have questions about Real Range?

Battery

Nominal Capacity	35.5 kWh
Usable Capacity	30 kWh
Battery Type	Lithium-ion
Architecture	400 V
Warranty Period	8 years
Warranty Mileage	160000 km
Cathode Material	No Data

Source: Manufacturer

Have questions about Battery?

Charging

Home / Destination

Charging Type	Type 2
Port Location	Rear Right
Charge Power	6.6 kW
Charge Time AC (0-100%)	5 h 10 min
Charge Speed (mild)	30 km/h
Charge Speed (cold)	20 km/h

Fast Charging

Fast Charging Port	CCS Combo 2
Port Location	Rear Right
Charge Power (max)	37 kW
Charge Power (10-80%)	34 kW
Charge Time DC (10-80%)	37 min
Charge Speed (mild)	170 km/h
Charge Speed (cold)	130 km/h
Autocharge Supported	No

Plug & Charge

Plug & Charge Supported	No
Supported Protocol	-

Preconditioning

Preconditioning Possible	No
Automatically using Navigation	No

Have questions about Charging?

Charging Times

Home / destination charging — 0–100%

AC full charge: fastest ~5h 10m

Charging option	Power used	Approx. time	Range per hour	Notes
Wall plug · 230V / 10A	2.3 kW	14h 50m	10 km/h	—
1-phase 16A · 230V / 16A	3.7 kW	9h 15m	17 km/h	—
1-phase 32A · 230V / 32A	6.6 kW	5h 10m	30 km/h	Limited by vehicle
3-phase 16A · 400V / 3x16A	6.6 kW	5h 10m	30 km/h	Limited by vehicle
3-phase 32A · 400V / 3x32A	6.6 kW	5h 10m	30 km/h	Limited by vehicle

Fast charging — 10–80%

Fastest DC 10–80%: ~37 min

Charging option	Power used	Approx. time	Range per hour	Notes
CCS 50+ kWCCS connector	34 kW avg.	37 min	173 km/h	Vehicle-limited above 50 kW

Estimated charging times are based on usable battery capacity, charging power and vehicle charging limits. Peak DC power is usually reached only briefly; average 10–80% power is more useful for estimating real charging time. Actual charging speed can vary by charger output, battery temperature, state of charge, weather, software and battery condition.

Performance

Acceleration	9.7 sec (0-100 km/h)
Top Speed	140 km/h
Total Power	105 kW (143 PS)
Total Torque	265 Nm
Drive	FWD

Have questions about Performance?

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L Supported	No
Max. Output Power	-
Exterior Outlet(s)	-
Interior Outlet(s)	-

Vehicle-to-Home (V2H)

V2H via AC Supported	No
Max. Output Power	-
V2H via DC Supported	No
Max. Output Power	-

Vehicle-to-Grid (V2G)

V2G via AC Supported	No
Max. Output Power	-
V2G via DC Supported	No
Max. Output Power	-

Have questions about Bidirectional Charging?

Energy Consumption

BEVDB model

Combined real range (estimate)	139 km
Combined Energy Use (estimate)	21.5 kWh/100 km

BEVDB estimates use WLTP-rated (or derived; falls back to NEDC when WLTP is missing) consumption and usable battery capacity to model city/highway ranges; the combined value is a weighted mix of city/highway and mild/cold scenarios. See the methodology and data sources for inputs, official source boundaries, fallback rules, and versioning.

NEDC Real Range

Range	237 km
Rated Consumption	17.3 kWh/100 km
Vehicle Consumption	12.7 kWh/100 km

WLTP Ratings (worst case)

Range	200 km
Rated Consumption	19 kWh/100 km

Have questions about Energy Consumption?

Safety (NCAP)

Safety Rating	5/5
Adult Occupant	91%
Child Occupant	87%
Rating Year	2020
Vulnerable Road Users	68%
Safety Assist	73%

Source: Euro NCAP

Have questions about Safety?

Dimensions and Weight

Length	4395 mm
Width	1795 mm
Width with Mirrors	2035 mm
Height	1555 mm
Wheelbase	2655 mm
Weight Unladen (EU)	1720 kg
Gross Vehicle Weight (GVWR)	2119 kg
Max. Payload	474 kg
Cargo Volume	366 L
Cargo Volume Max	1171 L
Cargo Volume Frunk	0 L
Roof Load	75 kg
Tow Hitch Possible	No
Towing Weight Unbraked	0 kg
Towing Weight Braked	0 kg
Vertical Load Max	0 kg

Have questions about Dimensions and Weight?

Miscellaneous

Price	€33,490
Seats	5 people
Isofix	Yes, 2 seats
Turning Circle	11.4 m
Platform	No Data
EV Dedicated Platform	No
Car Body	SUV
Roof Rails	No
Heat Pump	No
HP Standard Equipment	-

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions. Review the BEVDB methodology for estimate boundaries and source labels. If this model page looks wrong, use Contact and include this page URL plus an official source link when possible.
