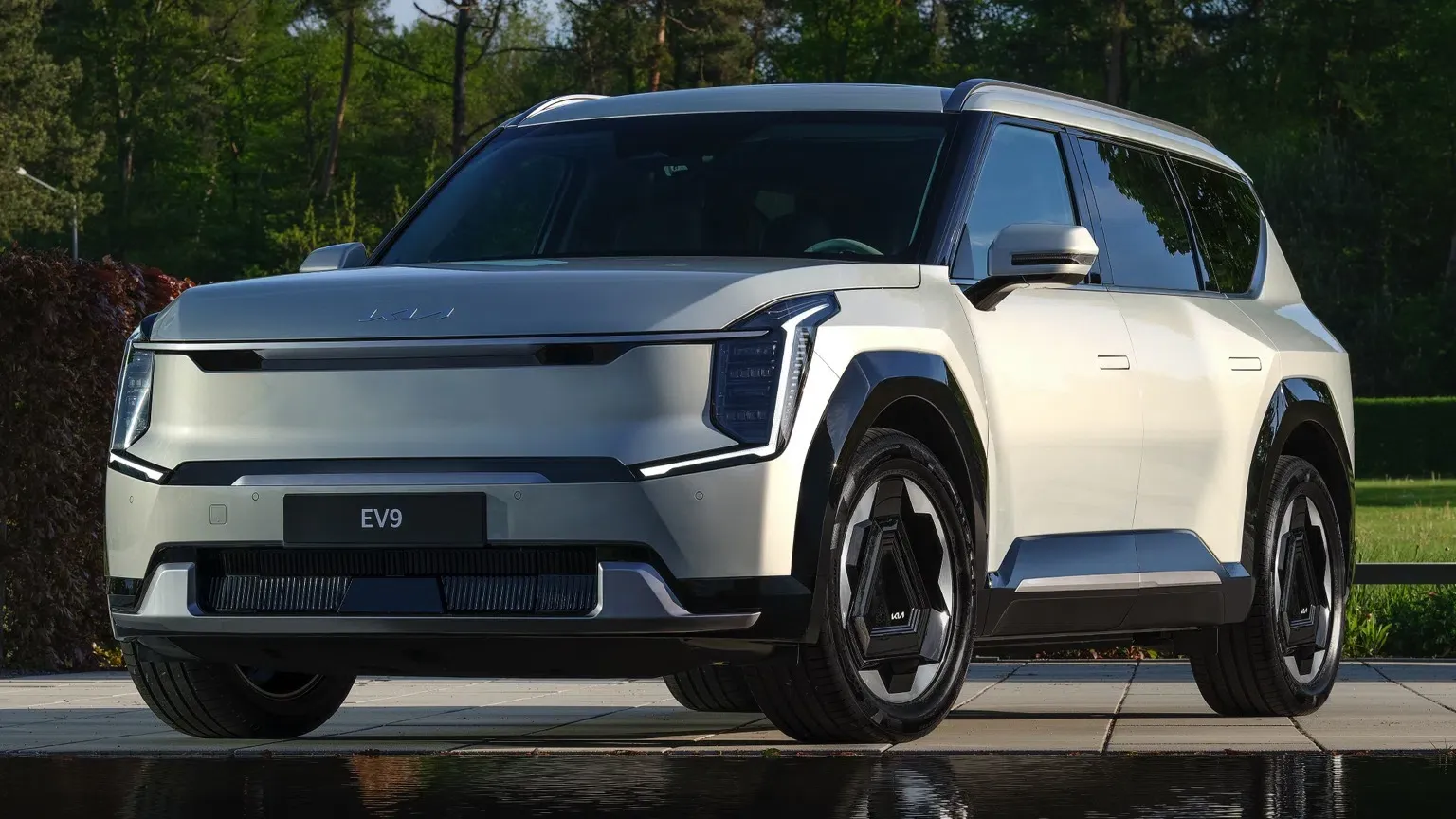

Kia EV9 99.8 kWh RWD 2023

Starting price: €72,490

Specification Road Planner Money Economy Garage Planner

Usable battery
96 kWh
Nominal battery
99.8 kWh
Drive
RWD
Real range (combined)
438 km
AC charging
11 kW
DC fast charging
209 kW

Ownership insights

Commute: 438 km real-world range | longer home charging sessions

Road-trip (10-80%): 20 min | +168 km in 10 min | peak 209 kW

Home charging (AC): 11 kW | 0-100% 9 h 55 min

Seats & cargo: 7 seats | 333 L | max 2393 L

Battery warranty: 7 years / 150,000 km

Overview

Kia EV9 99.8 kWh RWD 2023 overview

Official WLTP range is 537-563 km, with 96 kWh usable battery, DC up to 209 kW and typical 10-80% stops near 21 min (est.). Kia EV9 99.8 kWh RWD 2023 is an electric SUV with RWD and 7 seats.

A 10-minute DC top-up (est.) adds 168 km. Energy use is 20.7 kWh/100 km.

Well-suited to long-distance touring with minimal downtime at chargers. It uses an 800 V architecture.

Real Range

City - Mild Weather	522 km
City - Cold Weather	389 km
Highway - Mild Weather	426 km
Highway - Cold Weather	354 km

Estimates of actual range. The values given here are BEVDB estimates calculated from WLTP data and usable battery capacity, based on the BEVDB model. The BEVDB real-range card uses four fixed reference scenarios: City (Mild), Highway (Mild), City (Cold), and Highway (Cold). Mild means +20°C (70°F) without intensive climate-control use; cold means -10°C (14°F) with cabin heating. City speed is 50 km/h (30 mph), and highway speed is 110 km/h (70 mph). These figures are not official test results. Actual range will vary depending on speed, temperature, road conditions, road profile, load, tires, and driving style.

Have questions about Real Range?

Battery

Nominal Capacity	99.8 kWh
Usable Capacity	96 kWh
Battery Type	Lithium-ion
Architecture	800 V
Warranty Period	7 years
Warranty Mileage	150000 km
Cathode Material	NCM

Source: Manufacturer

Have questions about Battery?

Charging

Home / Destination

Charging Type	Type 2
Port Location	Rear Right
Charge Power	11 kW
Charge Time AC (0-100%)	9 h 55 min
Charge Speed (mild)	50 km/h
Charge Speed (cold)	40 km/h

Fast Charging

Fast Charging Port	CCS Combo 2
Port Location	Rear Right
Charge Power (max)	209 kW
Charge Power (10-80%)	194 kW
Charge Time DC (10-80%)	21 min
Charge Speed (mild)	950 km/h
Charge Speed (cold)	760 km/h
Autocharge Supported	Yes

Plug & Charge

Plug & Charge Supported	Yes
Supported Protocol	ISO 15118-2

Preconditioning

Preconditioning Possible	Yes
Automatically using Navigation	Yes

Have questions about Charging?

Charging Times

Home / destination charging — 0–100%

AC full charge: fastest ~9h 55m

Charging option	Power used	Approx. time	Range per hour	Notes
Wall plug · 230V / 10A	2.3 kW	47h 25m	10 km/h	—
1-phase 16A · 230V / 16A	3.7 kW	29h 30m	16 km/h	—
1-phase 32A · 230V / 32A	7.4 kW	14h 45m	32 km/h	—
3-phase 16A · 400V / 3x16A	11 kW	9h 55m	47 km/h	—
3-phase 32A · 400V / 3x32A	11 kW	9h 55m	47 km/h	Limited by vehicle

Fast charging — 10–80%

Fastest DC 10–80%: ~21 min

Charging option	Power used	Approx. time	Range per hour	Notes
CCS 50 kWCCS connector	50 kW avg.	1h 20m	244 km/h	—
CCS 150 kWCCS connector	126 kW avg.	32 min	616 km/h	Limited by charger
CCS 350 kWCCS connector	194 kW avg.	21 min	948 km/h	Limited by vehicle

Estimated charging times are based on usable battery capacity, charging power and vehicle charging limits. Peak DC power is usually reached only briefly; average 10–80% power is more useful for estimating real charging time. Actual charging speed can vary by charger output, battery temperature, state of charge, weather, software and battery condition.

Performance

Acceleration	9.4 sec (0-100 km/h)
Top Speed	185 km/h
Total Power	150 kW (204 PS)
Total Torque	350 Nm
WLTP Consumption (combined)	20.7 kWh/100 km
Drive	RWD

Have questions about Performance?

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L Supported	Yes
Max. Output Power	3.6 kW
Exterior Outlet(s)	1 x Type 2 (Adapter)
Interior Outlet(s)	1 x Standard Socket

Vehicle-to-Home (V2H)

V2H via AC Supported	Yes
Max. Output Power	11 kW
V2H via DC Supported	No
Max. Output Power	-

Vehicle-to-Grid (V2G)

V2G via AC Supported	Yes
Max. Output Power	11 kW
V2G via DC Supported	No
Max. Output Power	-

Have questions about Bidirectional Charging?

Energy Consumption

BEVDB model

Combined real range (estimate)	438 km
Combined Energy Use (estimate)	21.8 kWh/100 km

BEVDB estimates use WLTP-rated (or derived; falls back to NEDC when WLTP is missing) consumption and usable battery capacity to model city/highway ranges; the combined value is a weighted mix of city/highway and mild/cold scenarios. See the methodology and data sources for inputs, official source boundaries, fallback rules, and versioning.

WLTP Ratings (best case)

Range	563 km
Rated Consumption	20.2 kWh/100 km

WLTP Ratings (worst case)

Range	537 km
Rated Consumption	21.2 kWh/100 km

Have questions about Energy Consumption?

Safety (NCAP)

Safety Rating	5/5
Adult Occupant	84%
Child Occupant	88%
Rating Year	2023
Vulnerable Road Users	76%
Safety Assist	83%

Source: Euro NCAP

Have questions about Safety?

Dimensions and Weight

Length	5010 mm
Width	1980 mm
Width with Mirrors	2263 mm
Height	1755 mm
Wheelbase	3100 mm
Weight Unladen (EU)	2501 kg
Gross Vehicle Weight (GVWR)	3070 kg
Max. Payload	644 kg
Cargo Volume	333 L
Cargo Volume Max	2393 L
Cargo Volume Frunk	90 L
Roof Load	65 kg
Tow Hitch Possible	Yes
Towing Weight Unbraked	450 kg
Towing Weight Braked	900 kg
Vertical Load Max	45 kg

Have questions about Dimensions and Weight?

Miscellaneous

Price	€72,490
Seats	7 people
Isofix	Yes, 4 seats
Turning Circle	12.4 m
Platform	HMG E-GMP
EV Dedicated Platform	Yes
Car Body	SUV
Roof Rails	Yes
Heat Pump	Yes
HP Standard Equipment	Yes

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions. Review the BEVDB methodology for estimate boundaries and source labels. If this model page looks wrong, use Contact and include this page URL plus an official source link when possible.
