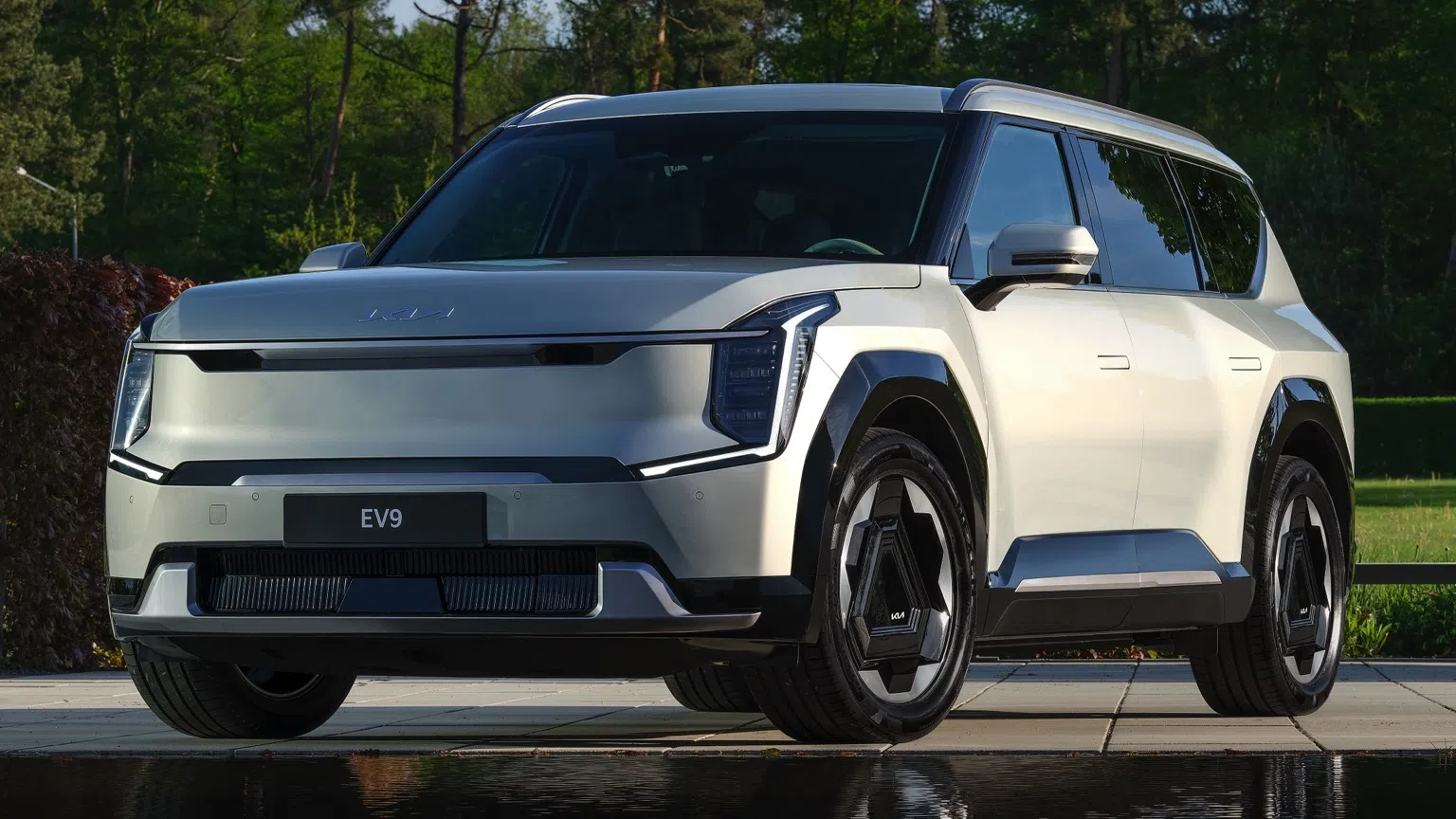

Kia EV9 76.1 kWh RWD 2024

Starting price: €61,990

Specification Road Planner Money Economy Garage Planner

Usable battery
73 kWh
Nominal battery
76.1 kWh
Drive
RWD
Real range (combined)
352 km
AC charging
11 kW
DC fast charging
210 kW

Ownership insights

Commute: 352 km real-world range | typical overnight home charging

Road-trip (10-80%): 20 min | +179 km in 10 min | peak 210 kW

Home charging (AC): 11 kW | 0-100% 7 h 30 min

Seats & cargo: 7 seats | 333 L | max 2393 L

Battery warranty: 7 years / 150,000 km

Overview

Kia EV9 76.1 kWh RWD 2024 overview

Official WLTP range is 443 km, with 73 kWh usable battery, DC up to 210 kW and typical 10-80% stops near 19 min (est.). Kia EV9 76.1 kWh RWD 2024 is an electric SUV with RWD and 7 seats.

Real-world estimate (BEVDB model, est.): 273 km (cold highway) and 437 km (mild city). A 10-minute DC top-up (est.) adds 179 km. Energy use is 19.5 kWh/100 km.

Fast charging keeps road-trip stops short, though the range between them suits mixed daily driving best. It uses an 800 V architecture.

Real Range

City - Mild Weather	437 km
City - Cold Weather	322 km
Highway - Mild Weather	331 km
Highway - Cold Weather	273 km

Estimates of actual range. The values given here are BEVDB estimates calculated from WLTP data and usable battery capacity, based on the BEVDB model. The BEVDB real-range card uses four fixed reference scenarios: City (Mild), Highway (Mild), City (Cold), and Highway (Cold). Mild means +20°C (70°F) without intensive climate-control use; cold means -10°C (14°F) with cabin heating. City speed is 50 km/h (30 mph), and highway speed is 110 km/h (70 mph). These figures are not official test results. Actual range will vary depending on speed, temperature, road conditions, road profile, load, tires, and driving style.

Have questions about Real Range?

Battery

Nominal Capacity	76.1 kWh
Usable Capacity	73 kWh
Battery Type	Lithium-ion
Architecture	800 V
Warranty Period	7 years
Warranty Mileage	150000 km
Cathode Material	NCM

Source: Manufacturer

Have questions about Battery?

Charging

Home / Destination

Charging Type	Type 2
Port Location	Rear Right
Charge Power	11 kW
Charge Time AC (0-100%)	7 h 30 min
Charge Speed (mild)	50 km/h
Charge Speed (cold)	40 km/h

Fast Charging

Fast Charging Port	CCS Combo 2
Port Location	Rear Right
Charge Power (max)	210 kW
Charge Power (10-80%)	160 kW
Charge Time DC (10-80%)	19 min
Charge Speed (mild)	830 km/h
Charge Speed (cold)	660 km/h
Autocharge Supported	Yes

Plug & Charge

Plug & Charge Supported	Yes
Supported Protocol	ISO 15118-2

Preconditioning

Preconditioning Possible	Yes
Automatically using Navigation	Yes

Have questions about Charging?

Charging Times

Home / destination charging — 0–100%

AC full charge: fastest ~7h 30m

Charging option	Power used	Approx. time	Range per hour	Notes
Wall plug · 230V / 10A	2.3 kW	36h 5m	10 km/h	—
1-phase 16A · 230V / 16A	3.7 kW	22h 25m	17 km/h	—
1-phase 32A · 230V / 32A	7.4 kW	11h 15m	34 km/h	—
3-phase 16A · 400V / 3x16A	11 kW	7h 30m	50 km/h	—
3-phase 32A · 400V / 3x32A	11 kW	7h 30m	50 km/h	Limited by vehicle

Fast charging — 10–80%

Fastest DC 10–80%: ~19 min

Charging option	Power used	Approx. time	Range per hour	Notes
CCS 50 kWCCS connector	50 kW avg.	1h	258 km/h	—
CCS 150 kWCCS connector	126 kW avg.	24 min	650 km/h	Limited by charger
CCS 350 kWCCS connector	160 kW avg.	19 min	826 km/h	Limited by vehicle

Estimated charging times are based on usable battery capacity, charging power and vehicle charging limits. Peak DC power is usually reached only briefly; average 10–80% power is more useful for estimating real charging time. Actual charging speed can vary by charger output, battery temperature, state of charge, weather, software and battery condition.

Performance

Acceleration	8.5 sec (0-100 km/h)
Top Speed	190 km/h
Total Power	160 kW (218 PS)
Total Torque	350 Nm
WLTP Consumption (combined)	19.5 kWh/100 km
Drive	RWD

Have questions about Performance?

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L Supported	Yes
Max. Output Power	3.6 kW
Exterior Outlet(s)	1 x Type 2 (Adapter)
Interior Outlet(s)	1 x Standard Socket

Vehicle-to-Home (V2H)

V2H via AC Supported	Yes
Max. Output Power	11 kW
V2H via DC Supported	No
Max. Output Power	-

Vehicle-to-Grid (V2G)

V2G via AC Supported	Yes
Max. Output Power	11 kW
V2G via DC Supported	No
Max. Output Power	-

Have questions about Bidirectional Charging?

Energy Consumption

BEVDB model

Combined real range (estimate)	352 km
Combined Energy Use (estimate)	20.6 kWh/100 km

BEVDB estimates use WLTP-rated (or derived; falls back to NEDC when WLTP is missing) consumption and usable battery capacity to model city/highway ranges; the combined value is a weighted mix of city/highway and mild/cold scenarios. See the methodology and data sources for inputs, official source boundaries, fallback rules, and versioning.

WLTP Ratings

Range	443 km
Rated Consumption	19.5 kWh/100 km

Have questions about Energy Consumption?

Safety (NCAP)

Safety Rating	5/5
Adult Occupant	84%
Child Occupant	88%
Rating Year	2023
Vulnerable Road Users	76%
Safety Assist	83%

Source: Euro NCAP

Have questions about Safety?

Dimensions and Weight

Length	5010 mm
Width	1980 mm
Width with Mirrors	2263 mm
Height	1755 mm
Wheelbase	3100 mm
Weight Unladen (EU)	2312 kg
Gross Vehicle Weight (GVWR)	2960 kg
Max. Payload	723 kg
Cargo Volume	333 L
Cargo Volume Max	2393 L
Cargo Volume Frunk	90 L
Roof Load	65 kg
Tow Hitch Possible	Yes
Towing Weight Unbraked	450 kg
Towing Weight Braked	900 kg
Vertical Load Max	45 kg

Have questions about Dimensions and Weight?

Miscellaneous

Price	€61,990
Seats	7 people
Isofix	Yes, 4 seats
Turning Circle	12.4 m
Platform	HMG E-GMP
EV Dedicated Platform	Yes
Car Body	SUV
Roof Rails	No
Heat Pump	Yes
HP Standard Equipment	Yes

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions. Review the BEVDB methodology for estimate boundaries and source labels. If this model page looks wrong, use Contact and include this page URL plus an official source link when possible.
