Tesla Model S Plaid 2022

Starting price: $135,990

SpecificationRoad PlannerMoney EconomyGarage Planner

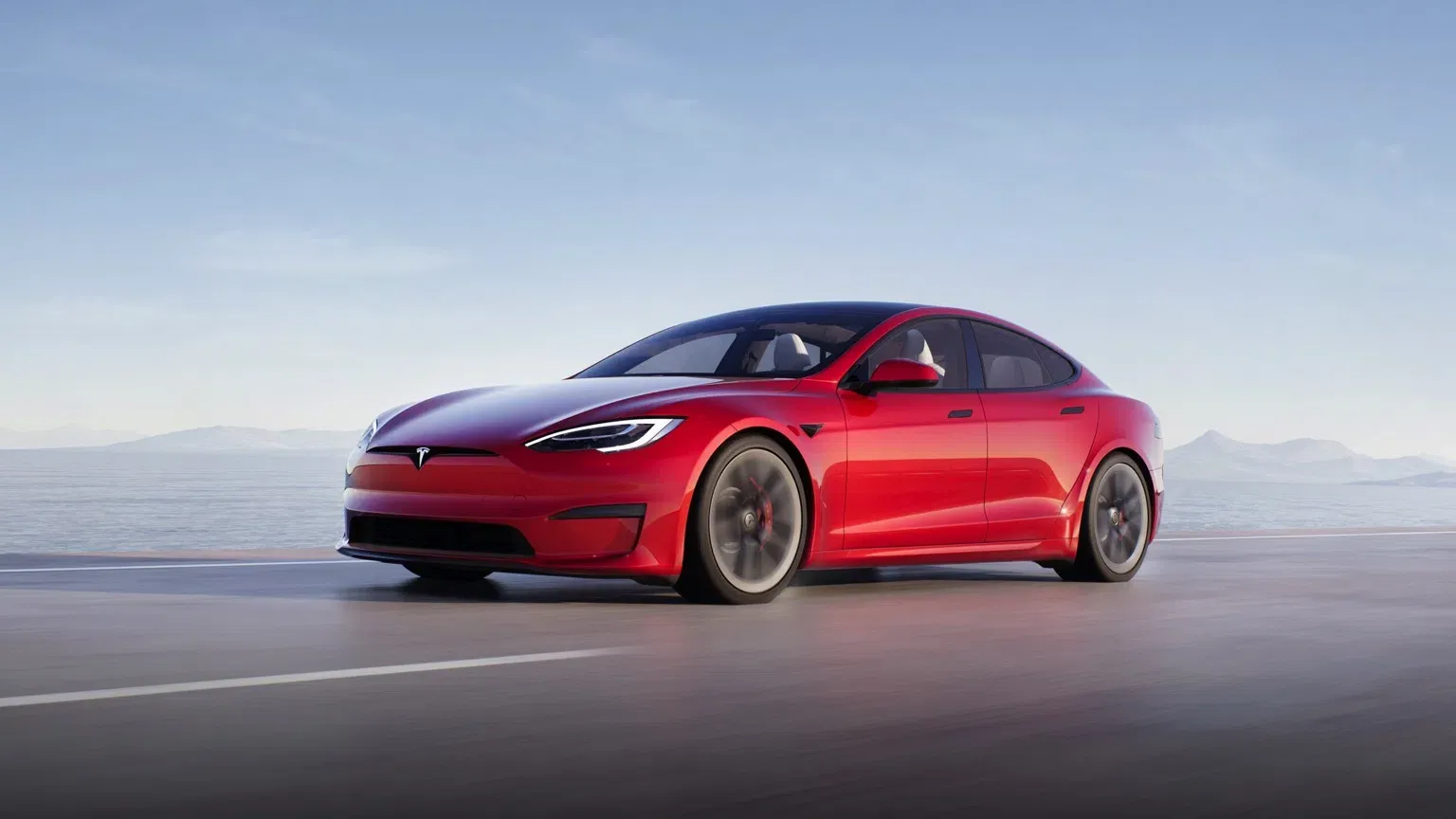

Tesla Model S Plaid 2022 image 1

Ownership insights

Commute: 327 mi real-world range | longer home charging sessions

Road-trip (10-80%): 20 min (est.) | +174 mi in 10 min | peak 250 kW

Home charging (AC): 11.5 kW | 0-100% 9 h 25 min

Seats & cargo: 5 seats | 28 cu ft | max 58.1 cu ft

Battery warranty: 8 years / 150,000 miles

Overview

Tesla Model S Plaid 2022 overview

Official EPA range is 396 mi, with 95 kWh usable battery, DC up to 250 kW (NACS) and typical 10-80% stops near 20 min (est.). Tesla Model S Plaid 2022 is an electric sedan with AWD and 5 seats.

Real-world estimate (BEVDB model, est.): around 270 miles on cold highway legs and up to 371 miles in mild city driving. A 10-minute DC top-up (est.) adds 174 miles. Combined efficiency is 116 MPGe, or about 29.1 kWh/100 mi.

Well-suited to long-distance touring with minimal downtime at chargers. Battery preconditioning supports navigation-based routing.

City - Mild Weather371 miles
City - Cold Weather268 miles
Highway - Mild Weather330 miles
Highway - Cold Weather270 miles

Estimates of actual range. The values given here are BEVDB estimates calculated from EPA data and usable battery capacity, based on the BEVDB model. The BEVDB real-range card uses four fixed reference scenarios: City (Mild), Highway (Mild), City (Cold), and Highway (Cold). Mild means +20°C (70°F) without intensive climate-control use; cold means -10°C (14°F) with cabin heating. City speed is 50 km/h (30 mph), and highway speed is 110 km/h (70 mph). These figures are not official test results. Actual range will vary depending on speed, temperature, road conditions, road profile, load, tires, and driving style.

Have questions about Real Range?
Nominal Capacity100 kWh
Usable Capacity95 kWh
Battery TypeLithium-ion
Architecture400 V
Warranty Period8 years
Warranty Mileage150000 miles
Cathode MaterialNCA

Source: Manufacturer

Have questions about Battery?

Home / Destination

Charging TypeNACSNACS icon
Port LocationRear Left
Charge Power11.5 kW
Charge Time AC (0-100%)9 h 25 min
Charge Speed (mild)20 miles/hour
Charge Speed (cold)20 miles/hour

Fast Charging

Fast Charging PortNACSNACS icon
Port LocationRear Left
Charge Power (max)250 kW
Charge Power (10-80%)200 kW
Charge Time DC (10-80%)20 min
Charge Speed (mild)490 miles/hour
Charge Speed (cold)380 miles/hour
Autocharge SupportedYes

Plug & Charge

Plug & Charge SupportedNo
Supported ProtocolNo Data

Preconditioning

Preconditioning PossibleYes
Automatically using NavigationYes
Have questions about Charging?

Home / destination charging — 0–100%

AC full charge: fastest ~9h 25m
Charging optionPower usedApprox. timeRange per hourNotes
Level 1 · 120V / 12A1.4 kW77h 5m3 mi/h—
Level 1 · 120V / 16A1.9 kW56h 50m4 mi/h—
Level 2 · 240V / 32A7.7 kW14h17 mi/h—
Level 2 · 240V / 40A9.6 kW11h 15m21 mi/h—
Level 2 · 240V / 48A11.5 kW9h 25m25 mi/h—

Fast charging — 10–80%

Fastest DC 10–80%: ~20 min
Charging optionPower usedApprox. timeRange per hourNotes
DC 50 kWNACS connector50 kW avg.1h 20m122 mi/h—
DC 150 kWNACS connector126 kW avg.32 min307 mi/hLimited by charger
DC 250+ kWNACS connector200 kW avg.20 min488 mi/hVehicle-limited above 250 kW

Estimated charging times are based on usable battery capacity, charging power and vehicle charging limits. Peak DC power is usually reached only briefly; average 10–80% power is more useful for estimating real charging time. Actual charging speed can vary by charger output, battery temperature, state of charge, weather, software and battery condition.

Acceleration2.3 sec (0-60 mph)
Top Speed175.2 mph
Total Power760 kW (1033 PS)
Total TorqueNo Data
EPA Consumption29.1 kWh/100 mi
DriveAWD
Have questions about Performance?

Vehicle-to-Load (V2L)

V2L SupportedNo
Max. Output Power-
Exterior Outlet(s)-
Interior Outlet(s)-

Vehicle-to-Home (V2H)

V2H via AC SupportedNo
Max. Output Power-
V2H via DC SupportedNo
Max. Output Power-

Vehicle-to-Grid (V2G)

V2G via AC SupportedNo
Max. Output Power-
V2G via DC SupportedNo
Max. Output Power-
Have questions about Bidirectional Charging?

BEVDB model

Combined real range (estimate)326.8 miles
Combined Energy Use (estimate)29 kWh/100 mi

BEVDB estimates use EPA-rated (or derived) consumption and usable battery capacity to model city/highway ranges; the combined value is a weighted mix of city/highway and mild/cold scenarios. See the methodology and data sources for inputs, official source boundaries, fallback rules, and versioning.

EPA

EPA Range395.8 mi
MPGe City119 MPGe
MPGe Highway112 MPGe
MPGe Combined116 MPGe
Energy Use29.1 kWh/100 mi

Source: EPA

Have questions about Energy Consumption?
Side crash:No Data
Front crash:No Data
Rollover resistance:5 stars
Safety rating:No Data
Rating year:2022

Source: NHTSA

Have questions about Safety?
Length195.7 in
Width77.3 in
Width with Mirrors86.1 in
Height56.9 in
Wheelbase116.5 in
Weight4629.7 lbs
Gross Vehicle Weight (GVWR)5732 lbs
Max. Payload1102.3 lbs
Cargo Volume28 ft³
Cargo Volume Max58.1 ft³
Cargo Volume Frunk5.3 ft³
Roof Load165.3 lbs
Tow Hitch PossibleYes
Towing Weight Unbraked1653.5 lbs
Towing Weight Braked3527.4 lbs
Vertical Load Max165.3 lbs
Have questions about Dimensions and Weight?
Price$135,990
Seats5
LATCHYes 2 seats
Turning Circle40.7 ft
PlatformTESLA S/X
EV Dedicated PlatformYes
Car BodySedan
Roof RailsNo
Heat PumpYes
HP Standard EquipmentYes

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions. Review the BEVDB methodology for estimate boundaries and source labels. If this model page looks wrong, use Contact and include this page URL plus an official source link when possible.
