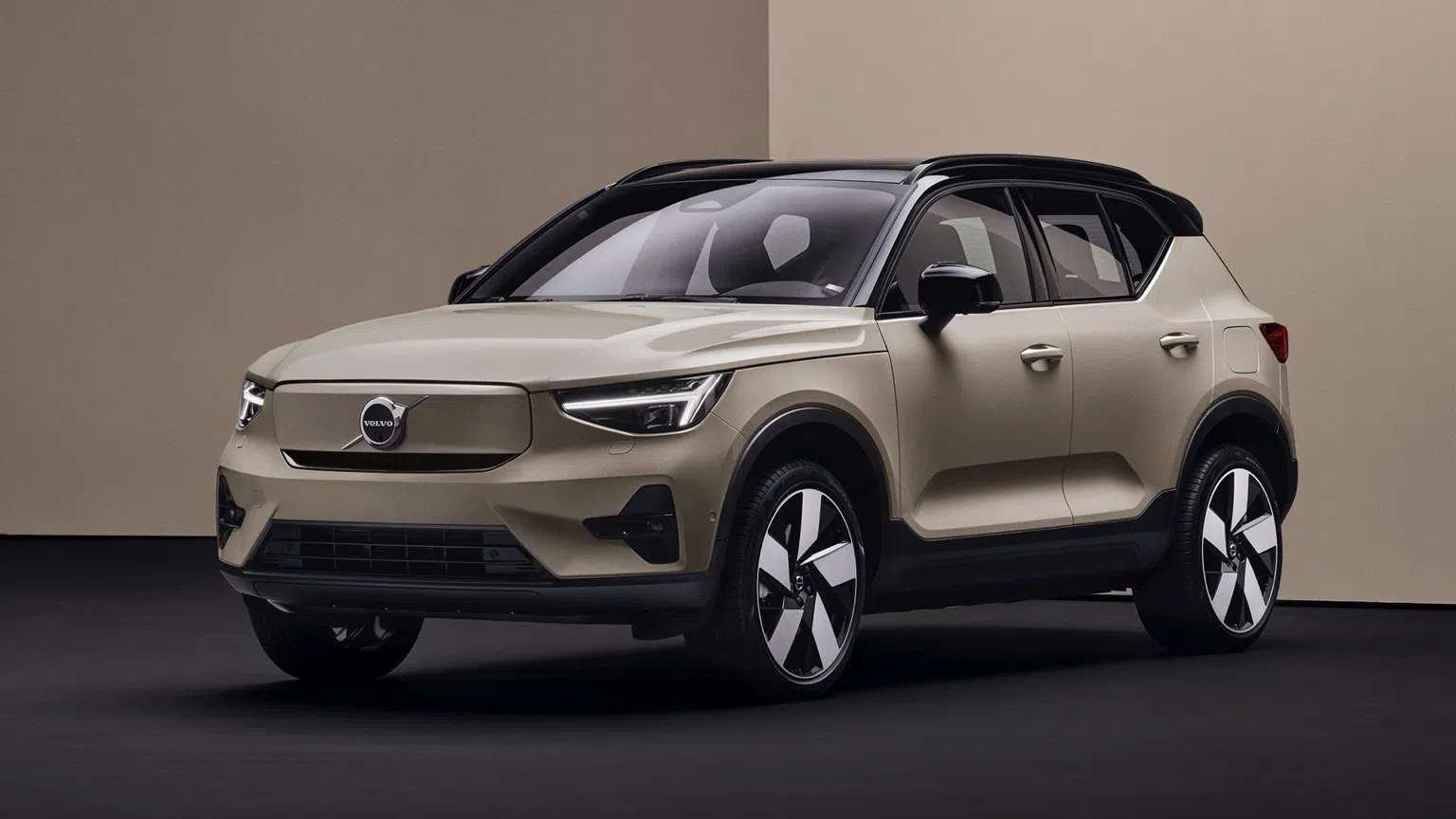

Volvo EX40 Single Motor 2024

Starting price: €49,990

Specification Road Planner EV Running Cost Calculator EV Garage Planner

Usable battery
67 kWh
Nominal battery
70 kWh
Drive
RWD
Real range (combined)
338 km
AC charging
11 kW
DC fast charging
180 kW

Ownership summary

Verdict:

Volvo EX40 Single Motor 2024 fits the role of a RWD electric SUV with a family-first ownership profile for daily driving, home charging and family use. The official WLTP range is a useful headline, but the BEVDB mixed estimate of about 338 km and the 261 km cold-highway scenario are better planning figures.

In daily use, home charging takes about 6 h 55 min from 0-100%; on trips, the 10-80% DC estimate is about 26 min (est.), which should make highway stops manageable. The practical side is documented with 5 seats, 410-1286 L cargo and 8 years / 160,000 km battery warranty. The BEVDB mixed estimate is meaningfully below the top WLTP figure. Range confidence is high and the tracked ownership specs are complete.

Best fit

Daily drivingHome chargingFamily use

Main caveatThe BEVDB mixed estimate is meaningfully below the top WLTP figure.

Range reality

Official WLTP range: 435-479 km
BEVDB mixed estimate: 338 km
Cold highway estimate: 261 km
Mixed vs top official: -141 km / -29%

Charging reality

Home charging: 0-100% 6 h 55 min
Fast charging: 10-80% 26 min (est.)
10-80% range added: 238 km Based on BEVDB combined consumption

Practical ownership

Seats: 5
Cargo: 410-1286 L
Battery warranty: 8 years / 160,000 km

Data quality

Range confidence: High
Specs completeness: Complete
Estimate basis: WLTP data + BEVDB model
Missing key data: None of the tracked key fields

Real Range

City - Mild Weather	427 km
City - Cold Weather	297 km
Highway - Mild Weather	318 km
Highway - Cold Weather	261 km

Estimates of actual range. The values given here are BEVDB estimates calculated from WLTP data and usable battery capacity, based on the BEVDB model. The BEVDB real-range card uses four fixed reference scenarios: City (Mild), Highway (Mild), City (Cold), and Highway (Cold). Mild means +20°C (70°F) without intensive climate-control use; cold means -10°C (14°F) with cabin heating. City speed is 50 km/h (30 mph), and highway speed is 110 km/h (70 mph). These figures are not official test results. Actual range will vary depending on speed, temperature, road conditions, road profile, load, tires, and driving style.

Have questions about Real Range?

Battery

Nominal Capacity	70 kWh
Usable Capacity	67 kWh
Battery Type	Lithium-ion
Architecture	400 V
Warranty Period	8 years
Warranty Mileage	160000 km
Cathode Material	NCM

Source: Manufacturer

Have questions about Battery?

Charging

Home / Destination

Charging Type	Type 2
Port Location	Rear Left
Charge Power	11 kW
Charge Time AC (0-100%)	6 h 55 min
Charge Speed (mild)	50 km/h
Charge Speed (cold)	40 km/h

Fast Charging

Fast Charging Port	CCS Combo 2
Port Location	Rear Left
Charge Power (max)	180 kW
Charge Power (10-80%)	110 kW
Charge Time DC (10-80%)	26 min
Charge Speed (mild)	600 km/h
Charge Speed (cold)	470 km/h
Autocharge Supported	Yes

Plug & Charge

Plug & Charge Supported	Limited
Supported Protocol	ISO 15118-2

Preconditioning

Preconditioning Possible	Yes
Automatically using Navigation	Yes

Have questions about Charging?

Charging Times

Home / destination charging — 0–100%

AC full charge: fastest ~6h 55m

Charging option	Power used	Approx. time	Range per hour	Notes
Wall plug · 230V / 10A	2.3 kW	33h 5m	11 km/h	—
1-phase 16A · 230V / 16A	3.7 kW	20h 35m	18 km/h	—
1-phase 32A · 230V / 32A	7.4 kW	10h 15m	35 km/h	—
3-phase 16A · 400V / 3x16A	11 kW	6h 55m	53 km/h	—
3-phase 32A · 400V / 3x32A	11 kW	6h 55m	53 km/h	Limited by vehicle

Fast charging — 10–80%

Fastest DC 10–80%: ~26 min

Charging option	Power used	Approx. time	Range per hour	Notes
CCS 50 kWCCS connector	50 kW avg.	56 min	272 km/h	—
CCS 150 kWCCS connector	110 kW avg.	26 min	599 km/h	Limited by charger
CCS 350 kWCCS connector	110 kW avg.	26 min	599 km/h	Limited by vehicle

Estimated charging times are based on usable battery capacity, charging power and vehicle charging limits. Peak DC power is usually reached only briefly; average 10–80% power is more useful for estimating real charging time. Actual charging speed can vary by charger output, battery temperature, state of charge, weather, software and battery condition.

Performance

Acceleration	7.3 sec (0-100 km/h)
Top Speed	180 km/h
Total Power	175 kW (238 PS)
Total Torque	420 Nm
WLTP Consumption (combined)	17.9 kWh/100 km
Drive	RWD

Have questions about Performance?

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L Supported	No
Max. Output Power	-
Exterior Outlet(s)	-
Interior Outlet(s)	-

Vehicle-to-Home (V2H)

V2H via AC Supported	No
Max. Output Power	-
V2H via DC Supported	No
Max. Output Power	-

Vehicle-to-Grid (V2G)

V2G via AC Supported	No
Max. Output Power	-
V2G via DC Supported	No
Max. Output Power	-

Have questions about Bidirectional Charging?

Energy Consumption

BEVDB model

Combined real range (estimate)	338 km
Combined Energy Use (estimate)	19.7 kWh/100 km

BEVDB estimates use WLTP-rated (or derived; falls back to NEDC when WLTP is missing) consumption and usable battery capacity to model city/highway ranges; the combined value is a weighted mix of city/highway and mild/cold scenarios. See the methodology and data sources for inputs, official source boundaries, fallback rules, and versioning.

WLTP Ratings (best case)

Range	479 km
Rated Consumption	17.1 kWh/100 km

WLTP Ratings (worst case)

Range	435 km
Rated Consumption	18.7 kWh/100 km

Have questions about Energy Consumption?

Safety (NCAP)

Safety Rating	5/5
Adult Occupant	88%
Child Occupant	85%
Rating Year	2024
Vulnerable Road Users	79%
Safety Assist	80%

Source: Euro NCAP

Have questions about Safety?

Dimensions and Weight

Length	4440 mm
Width	1863 mm
Width with Mirrors	2034 mm
Height	1652 mm
Wheelbase	2702 mm
Weight Unladen (EU)	2040 kg
Gross Vehicle Weight (GVWR)	2470 kg
Max. Payload	505 kg
Cargo Volume	410 L
Cargo Volume Max	1286 L
Cargo Volume Frunk	31 L
Roof Load	75 kg
Tow Hitch Possible	Yes
Towing Weight Unbraked	750 kg
Towing Weight Braked	1500 kg
Vertical Load Max	100 kg

Have questions about Dimensions and Weight?

Miscellaneous

Price	€49,990
Seats	5
Isofix	Yes, 2 seats
Turning Circle	11.4 m
Platform	Volvo CMA
EV Dedicated Platform	No
Car Body	SUV
Roof Rails	Yes
Heat Pump	Yes
HP Standard Equipment	No, optional

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions. Review the BEVDB methodology for estimate boundaries and source labels. If this model page looks wrong, use Contact and include this page URL plus an official source link when possible.
