Volkswagen ID.5 GTX 2022

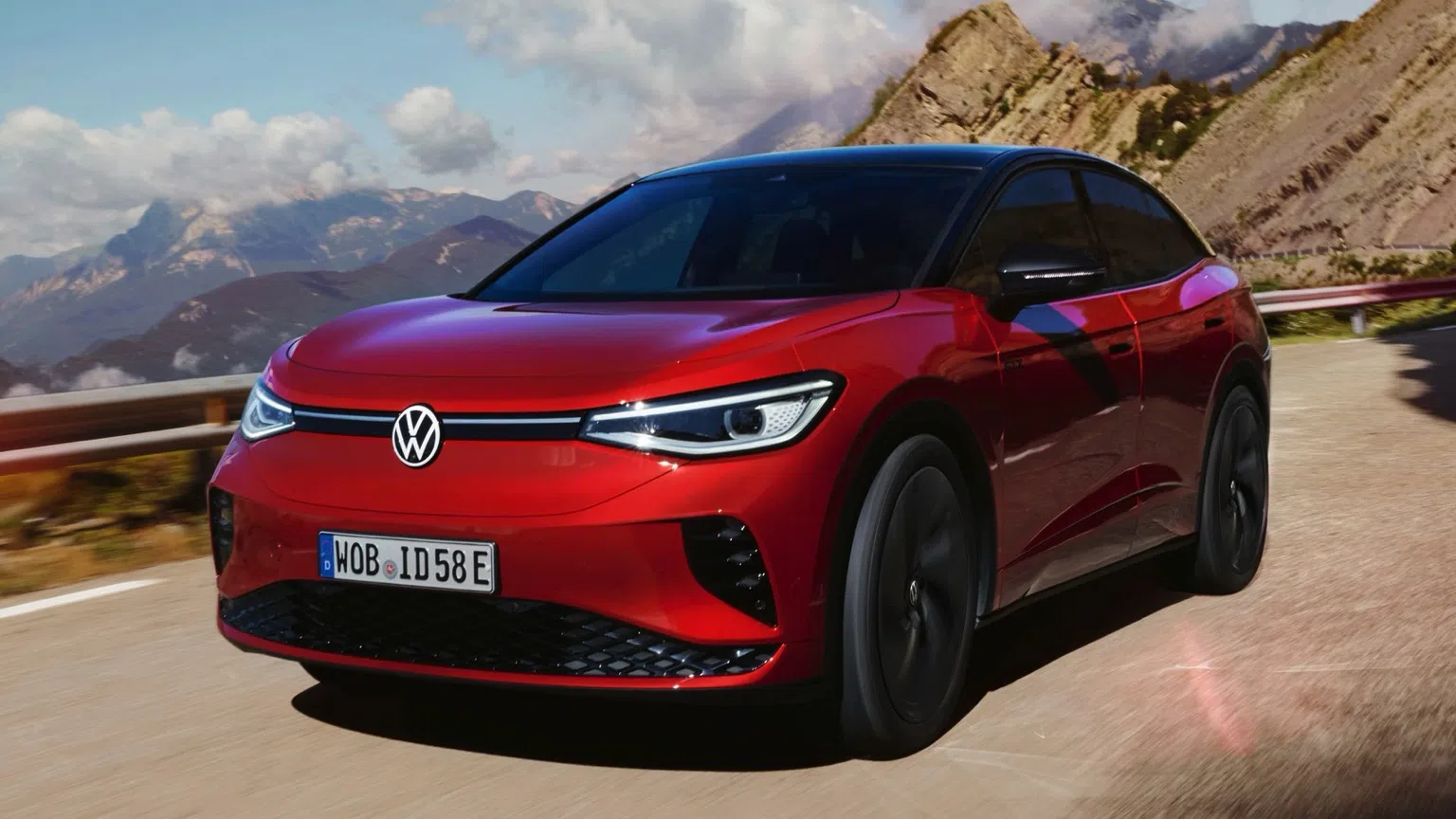

Volkswagen ID.5 GTX  2022 image 1

Ownership insights

Commute: 384 km real-world range | typical overnight home charging

Road-trip (10-80%): 30 min | +151 km in 10 min | peak 175 kW

Home charging (AC): 11 kW | 0-100% 7 h 55 min

Seats & cargo: 5 seats | 549 L | max 1561 L

Battery warranty: 160,000 km

Overview

Volkswagen ID.5 GTX 2022 overview

Volkswagen ID.5 GTX 2022 is an electric SUV with AWD and 5 seats. This trim trades efficiency for performance/size (19.3 kWh/100 km, higher than the class median of 17.9 kWh/100 km).

WLTP range: 473-495 km. Battery capacity: 77 kWh usable (82 kWh nominal).

Charging: AC up to 11 kW (Type 2); DC up to 175 kW (CCS Combo 2). On a DC fast charger, it adds ~151 km in 10 min; Towing capacity up to 1200 kg.

Class comparison

Among 503 SUVs, Volkswagen ID.5 GTX 2022 leans toward higher peak DC power and higher energy use. Peak DC power is above the class median; 175 kW vs 150 kW; 25 kW higher, +17%. Official energy use is higher than the class median; 19.3 kWh/100 km vs 17.9 kWh/100 km; 1.4 kWh/100 km higher, +8%. Good fit if you prioritize higher peak DC power and can live with higher energy use.

City - Mild Weather547 km
City - Cold Weather369 km
Highway - Mild Weather350 km
Highway - Cold Weather270 km

Real range estimates The values shown here are estimates calculated by BEV-Database using WLTP data and the usable battery capacity of the car. Mild weather represents driving in roughly +20 +25 C without heavy use of climate control, while Cold weather reflects winter conditions with cabin heating. Highway assumes steady cruising at about 110 km/h. These figures are not official test results. Real-world range will vary depending on speed, temperature, traffic, road profile, payload, tyres and driving style.

Have questions?
Nominal Capacity82 kWh
Usable Capacity77 kWh
Battery TypeLithium-ion
Architecture400 V
Warranty PeriodNo Data
Warranty Mileage160000 km
Cathode MaterialNo Data

Source: Manufacturer

Have questions?

Home / Destination

Charging TypeType 2Type 2 icon
Port LocationRear Right
Charge Power11 kW
Charge Time AC (0-100%)7 h 55 min
Charge Speed (mild)50 km/h
Charge Speed (cold)40 km/h

Fast Charging

Fast Charging PortCCS Combo 2CCS Combo 2 icon
Port LocationRear Right
Charge Power (max)175 kW
Charge Power (10-80%)115 kW
Charge Time DC (10-80%)30 min
Charge Speed (mild)640 km/h
Charge Speed (cold)470 km/h
Autocharge SupportedNo

Plug & Charge

Plug & Charge SupportedYes
Supported ProtocolISO 15118-2

Preconditioning

Preconditioning PossibleNo
Automatically using NavigationNo
Have questions?
Acceleration6.3 sec (0-100 km/h)
Top Speed180 km/h
Total Power220 kW (299 PS)
Total Torque460 Nm
Consumption19.3 kWh/100 km
DriveAWD
Have questions?

Vehicle-to-Load (V2L)

V2L SupportedNo
Max. Output Power-
Exterior Outlet(s)-
Interior Outlet(s)-

Vehicle-to-Home (V2H)

V2H via AC SupportedNo
Max. Output Power-
V2H via DC SupportedNo Data
Max. Output Power10 kW

Vehicle-to-Grid (V2G)

V2G via AC SupportedNo
Max. Output Power-
V2G via DC SupportedNo Data
Max. Output Power10 kW
Have questions?

BEVDB model

Combined real range (estimate)384 km
Combined Energy Use (estimate)19.3 kWh/100 km

BEVDB estimates use WLTP-rated (or derived) consumption and usable battery capacity to model city/highway ranges; the combined value averages the four scenarios.

WLTP Ratings (best case)

Range495 km
Rated Consumption17.9 kWh/100 km

WLTP Ratings (worst case)

Range473 km
Rated Consumption20.7 kWh/100 km
Have questions?
Safety Rating5/5
Adult Occupant93%
Child Occupant89%
Rating Year2021
Vulnerable Road Users76%
Safety Assist85%

Source: Euro NCAP

Have questions?
Length4599 mm
Width1852 mm
Width with Mirrors2108 mm
Height1615 mm
Wheelbase2771 mm
Weight Unladen (EU)2242 kg
Gross Vehicle Weight (GVWR)2750 kg
Max. Payload583 kg
Cargo Volume549 L
Cargo Volume Max1561 L
Cargo Volume Frunk0 L
Roof Load75 kg
Tow Hitch PossibleYes
Towing Weight Unbraked750 kg
Towing Weight Braked1200 kg
Vertical Load Max75 kg
Have questions?
Seats5 people
IsofixYes, 3 seats
Turning Circle11.5 m
PlatformVW MEB
EV Dedicated PlatformYes
Car BodySUV
Roof RailsYes
Heat PumpYes
HP Standard EquipmentNo, optional

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions.
