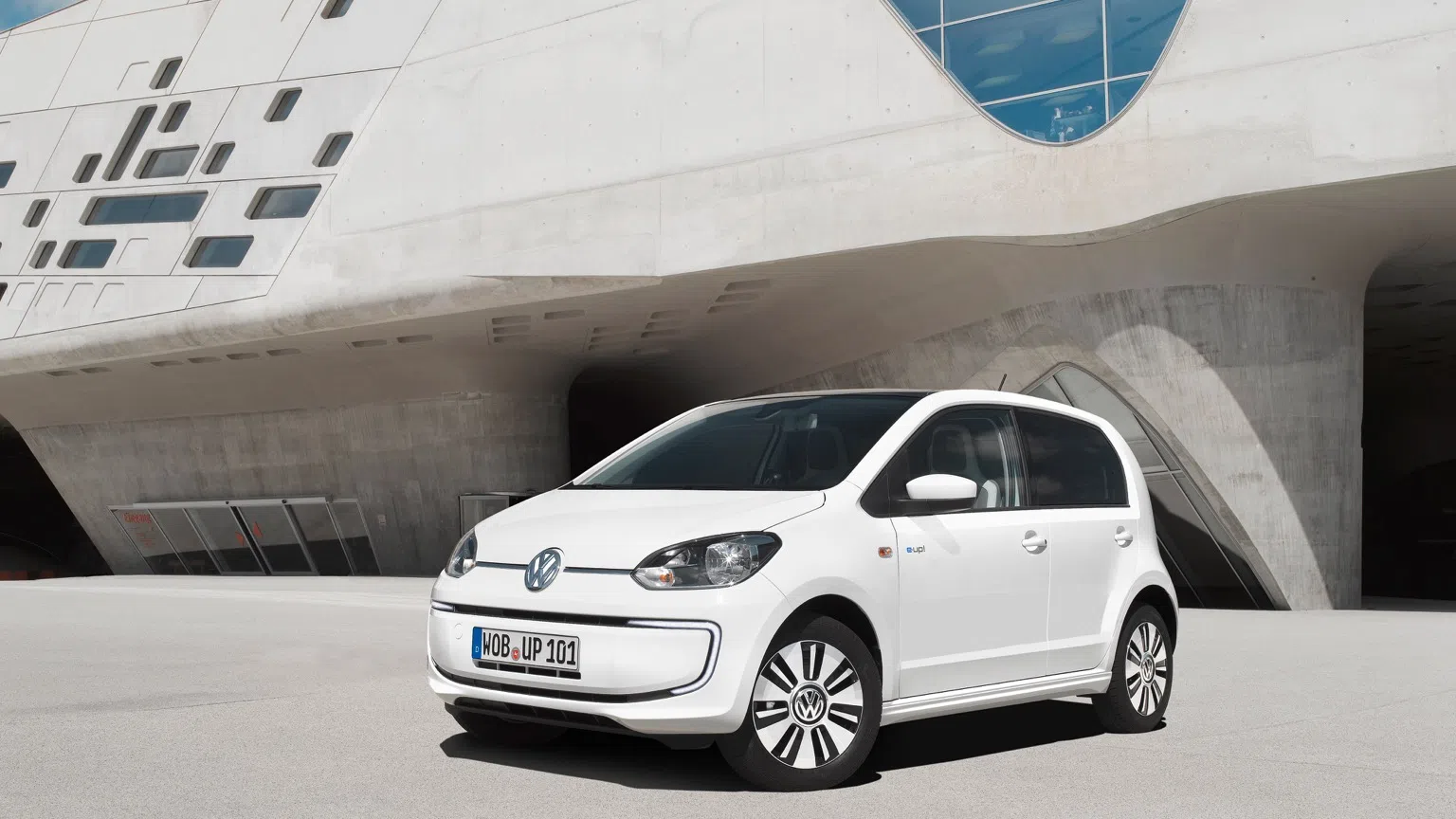

Volkswagen e-Up! 2016

Usable battery
16 kWh
Nominal battery
18.7 kWh
Drive
FWD
Real range (combined)
111 km
AC charging
3.7 kW
DC fast charging
37 kW

Ownership insights

Commute: 111 km real-world range | easy overnight home charging

Road-trip (10-80%): 20 min | +45 km in 10 min | peak 37 kW

Home charging (AC): 3.7 kW | 0-100% 4 h 55 min

Seats & cargo: 4 seats | 250 L | max 923 L

Battery warranty: 160,000 km

Overview

Volkswagen e-Up! 2016 overview

In this trim, Volkswagen e-Up! 2016 is an electric hatchback with FWD and seating for 4.

Battery capacity: 16 kWh usable (18.7 kWh nominal). It runs on a 400 V architecture.

Charging: AC up to 3.7 kW (Type 2); DC up to 37 kW (CCS Combo 2). On a DC fast charger, it adds ~45 km in 10 min; Key performance figures: 0-100 km/h: 12.4 s; 130 km/h top speed.

Class comparison

Compared with 152 other hatchbacks, Volkswagen e-Up! 2016 leans toward a smaller usable battery and shorter range. Usable battery capacity is below the class median; 16 kWh vs 45.4 kWh; 29.4 kWh lower, -65%. WLTP range is below the class median; 133 km vs 330 km; 197 km lower, -60%. Peak DC power is below the class median; 37 kW vs 85 kW; 48 kW lower, -56%. Worth considering if you can live with a smaller usable battery and shorter legs between charges.

Real Range

City - Mild Weather	128 km
City - Cold Weather	107 km
Highway - Mild Weather	101 km
Highway - Cold Weather	78 km

Real range estimates The values shown here are estimates calculated by BEV-Database using WLTP data and the usable battery capacity of the car. Mild weather represents driving in roughly +20 +25 C without heavy use of climate control, while Cold weather reflects winter conditions with cabin heating. Highway assumes steady cruising at about 110 km/h. These figures are not official test results. Real-world range will vary depending on speed, temperature, traffic, road profile, payload, tyres and driving style.

Have questions?

Battery

Nominal Capacity	18.7 kWh
Usable Capacity	16 kWh
Battery Type	Lithium-ion
Architecture	400 V
Warranty Period	No Data
Warranty Mileage	160000 km
Cathode Material	No Data

Source: Manufacturer

Have questions?

Charging

Home / Destination

Charging Type	Type 2
Port Location	Rear Right
Charge Power	3.7 kW
Charge Time AC (0-100%)	4 h 55 min
Charge Speed (mild)	30 km/h
Charge Speed (cold)	20 km/h

Fast Charging

Fast Charging Port	CCS Combo 2
Port Location	Rear Right
Charge Power (max)	37 kW
Charge Power (10-80%)	30 kW
Charge Time DC (10-80%)	20 min
Charge Speed (mild)	230 km/h
Charge Speed (cold)	170 km/h
Autocharge Supported	No

Plug & Charge

Plug & Charge Supported	No
Supported Protocol	-

Preconditioning

Preconditioning Possible	No
Automatically using Navigation	No

Have questions?

Performance

Acceleration	12.4 sec (0-100 km/h)
Top Speed	130 km/h
Total Power	60 kW (82 PS)
Total Torque	210 Nm
Consumption	13.8 kWh/100 km
Drive	FWD

Have questions?

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L Supported	No
Max. Output Power	-
Exterior Outlet(s)	-
Interior Outlet(s)	-

Vehicle-to-Home (V2H)

V2H via AC Supported	No
Max. Output Power	-
V2H via DC Supported	No
Max. Output Power	-

Vehicle-to-Grid (V2G)

V2G via AC Supported	No
Max. Output Power	-
V2G via DC Supported	No
Max. Output Power	-

Have questions?

Energy Consumption

BEVDB model

Combined real range (estimate)	111 km
Combined Energy Use (estimate)	13.8 kWh/100 km

BEVDB estimates use WLTP-rated (or derived) consumption and usable battery capacity to model city/highway ranges; the combined value averages the four scenarios.

NEDC Real Range

Range	160 km
Rated Consumption	11.7 kWh/100 km

WLTP Ratings (worst case)

Range

133 km

Have questions?

Safety (NCAP)

Safety Rating	No Data
Adult Occupant	No Data
Child Occupant	No Data
Rating Year	No Data
Vulnerable Road Users	No Data
Safety Assist	No Data

Source: Euro NCAP

Have questions?

Dimensions and Weight

Length	3540 mm
Width	1645 mm
Width with Mirrors	No Data
Height	1489 mm
Wheelbase	2417 mm
Weight Unladen (EU)	1229 kg
Gross Vehicle Weight (GVWR)	1530 kg
Max. Payload	376 kg
Cargo Volume	250 L
Cargo Volume Max	923 L
Cargo Volume Frunk	0 L
Roof Load	50 kg
Tow Hitch Possible	No
Towing Weight Unbraked	0 kg
Towing Weight Braked	0 kg
Vertical Load Max	0 kg

Have questions?

Miscellaneous

Seats	4 people
Isofix	Yes, 2 seats
Turning Circle	9.8 m
Platform	VW NSF
EV Dedicated Platform	No
Car Body	Hatchback
Roof Rails	No
Heat Pump	No Data
HP Standard Equipment	No Data

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions.
