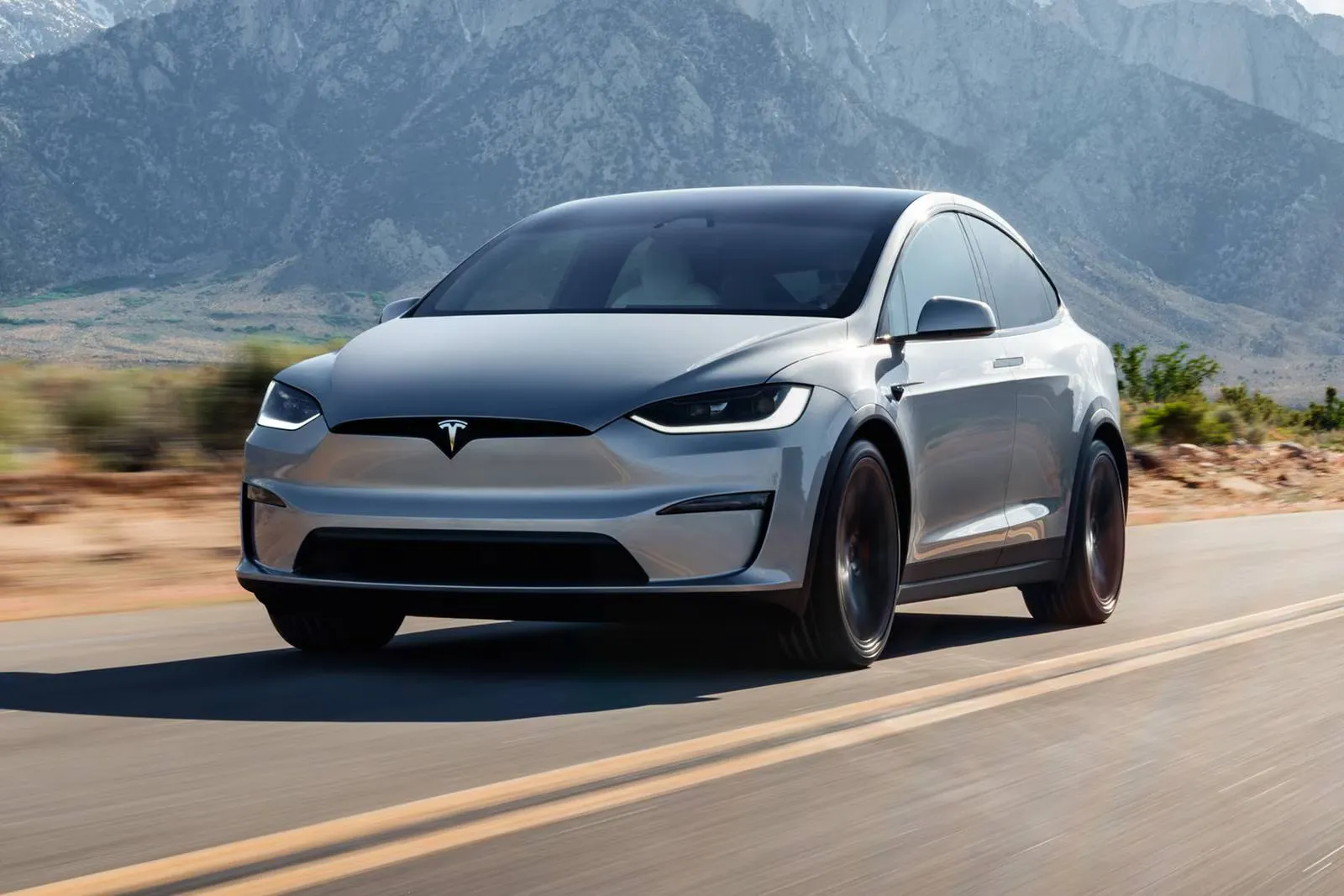

Tesla Model X Plaid

Estimates of actual range. The values given here are BEVDB estimates calculated from WLTP data and usable battery capacity, based on the BEVDB model. The BEVDB real-range card uses four fixed reference scenarios: City (Mild), Highway (Mild), City (Cold), and Highway (Cold). Mild means +20°C (70°F) without intensive climate-control use; cold means -10°C (14°F) with cabin heating. City speed is 50 km/h (30 mph), and highway speed is 110 km/h (70 mph). These figures are not official test results. Actual range will vary depending on speed, temperature, road conditions, road profile, load, tires, and driving style.

Source: Manufacturer

Home / Destination

Charging Type	Type 2
Port Location	Rear Left
Charge Power	11 kW
Charge Time AC (0-100%)	9 h 49 min
Charge Speed (mild)	50 km/h
Charge Speed (cold)	40 km/h

Fast Charging

Fast Charging Port	CCS Combo 2
Port Location	Rear Left
Charge Power (max)	250 kW
Charge Power (10-80%)	140 kW
Charge Time DC (10-80%)	29 min
Charge Speed (mild)	700 km/h
Charge Speed (cold)	550 km/h
Autocharge Supported	Yes

Plug & Charge

Preconditioning

Vehicle-to-Load (V2L)

Vehicle-to-Home (V2H)

Vehicle-to-Grid (V2G)

BEVDB model

BEVDB estimates use WLTP-rated (or derived; falls back to NEDC when WLTP is missing) consumption and usable battery capacity to model city/highway ranges; the combined value is a weighted mix of city/highway and mild/cold scenarios. See the methodology and data sources for inputs, official source boundaries, fallback rules, and versioning.

WLTP Ratings (worst case)
