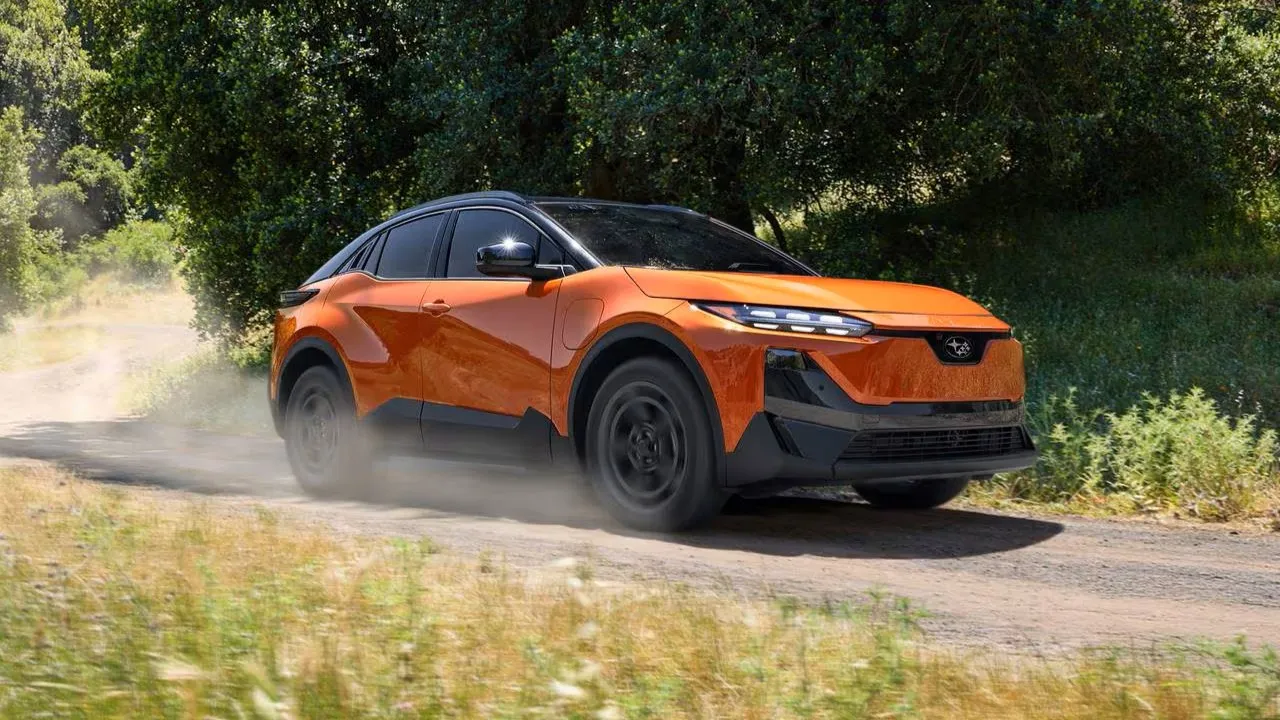

Subaru Uncharted 77 kWh 2026

Starting price: €41,990

Specification Road Planner Money Economy Garage Planner

Usable battery
72 kWh
Nominal battery
77 kWh
Drive
FWD
Real range (combined)
473 km
AC charging
22 kW
DC fast charging
150 kW

Ownership insights

Commute: 473 km real-world range | easy overnight home charging

Road-trip (10-80%): 25 min | +181 km in 10 min | peak 150 kW

Home charging (AC): 22 kW | 0-100% 3 h 45 min

Seats & cargo: 5 seats | 404 L

Battery warranty: 8 years / 1,000,000 km

Overview

Subaru Uncharted 77 kWh 2026 overview

Official WLTP range is 588 km, with 72 kWh usable battery, DC up to 150 kW and typical 10-80% stops near 27 min (est.). Subaru Uncharted 77 kWh 2026 is an electric SUV with FWD and 5 seats.

Real-world estimate (BEVDB model, est.): 390 km (cold highway) and 533 km (mild city). A 10-minute DC top-up (est.) adds 181 km. Energy use is 13.8 kWh/100 km.

Fast charging keeps road-trip stops short, though the range between them suits mixed daily driving best. Battery preconditioning supports navigation-based routing.

Real Range

City - Mild Weather	533 km
City - Cold Weather	422 km
Highway - Mild Weather	482 km
Highway - Cold Weather	390 km

Estimates of actual range. The values given here are BEVDB estimates calculated from WLTP data and usable battery capacity, based on the BEVDB model. The BEVDB real-range card uses four fixed reference scenarios: City (Mild), Highway (Mild), City (Cold), and Highway (Cold). Mild means +20°C (70°F) without intensive climate-control use; cold means -10°C (14°F) with cabin heating. City speed is 50 km/h (30 mph), and highway speed is 110 km/h (70 mph). These figures are not official test results. Actual range will vary depending on speed, temperature, road conditions, road profile, load, tires, and driving style.

Have questions about Real Range?

Battery

Nominal Capacity	77 kWh
Usable Capacity	72 kWh
Battery Type	Lithium-ion
Architecture	400 V
Warranty Period	8 years
Warranty Mileage	1000000 km
Cathode Material	NMC

Source: Manufacturer

Have questions about Battery?

Charging

Home / Destination

Charging Type	Type 2
Port Location	Front Left
Charge Power	22 kW
Charge Time AC (0-100%)	3 h 45 min
Charge Speed (mild)	140 km/h
Charge Speed (cold)	110 km/h

Fast Charging

Fast Charging Port	CCS Combo 2
Port Location	Front Left
Charge Power (max)	150 kW
Charge Power (10-80%)	110 kW
Charge Time DC (10-80%)	27 min
Charge Speed (mild)	770 km/h
Charge Speed (cold)	630 km/h
Autocharge Supported	No Data

Plug & Charge

Plug & Charge Supported	No
Supported Protocol	-

Preconditioning

Preconditioning Possible	Yes
Automatically using Navigation	Yes

Have questions about Charging?

Charging Times

Home / destination charging — 0–100%

AC full charge: fastest ~3h 45m

Charging option	Power used	Approx. time	Range per hour	Notes
Wall plug · 230V / 10A	2.3 kW	35h 35m	14 km/h	—
1-phase 16A · 230V / 16A	3.7 kW	22h 5m	23 km/h	—
1-phase 32A · 230V / 32A	7.4 kW	11h 5m	46 km/h	—
3-phase 16A · 400V / 3x16A	11 kW	7h 25m	68 km/h	—
3-phase 32A · 400V / 3x32A	22 kW	3h 45m	136 km/h	—

Fast charging — 10–80%

Fastest DC 10–80%: ~27 min

Charging option	Power used	Approx. time	Range per hour	Notes
CCS 50 kWCCS connector	50 kW avg.	1h	352 km/h	—
CCS 150+ kWCCS connector	110 kW avg.	27 min	773 km/h	Vehicle-limited above 150 kW

Estimated charging times are based on usable battery capacity, charging power and vehicle charging limits. Peak DC power is usually reached only briefly; average 10–80% power is more useful for estimating real charging time. Actual charging speed can vary by charger output, battery temperature, state of charge, weather, software and battery condition.

Performance

Acceleration	7.3 sec (0-100 km/h)
Top Speed	160 km/h
Total Power	167 kW (227 PS)
Total Torque	268 Nm
Drive	FWD

Have questions about Performance?

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L Supported	No
Max. Output Power	-
Exterior Outlet(s)	-
Interior Outlet(s)	-

Vehicle-to-Home (V2H)

V2H via AC Supported	No
Max. Output Power	-
V2H via DC Supported	No
Max. Output Power	-

Vehicle-to-Grid (V2G)

V2G via AC Supported	No
Max. Output Power	-
V2G via DC Supported	No
Max. Output Power	-

Have questions about Bidirectional Charging?

Energy Consumption

BEVDB model

Combined real range (estimate)	473 km
Combined Energy Use (estimate)	15.2 kWh/100 km

BEVDB estimates use WLTP-rated (or derived; falls back to NEDC when WLTP is missing) consumption and usable battery capacity to model city/highway ranges; the combined value is a weighted mix of city/highway and mild/cold scenarios. See the methodology and data sources for inputs, official source boundaries, fallback rules, and versioning.

WLTP Ratings (worst case)

Range	588 km
Rated Consumption	13.8 kWh/100 km

Have questions about Energy Consumption?

Safety (NCAP)

Safety Rating	No Data
Adult Occupant	No Data
Child Occupant	No Data
Rating Year	No Data
Vulnerable Road Users	No Data
Safety Assist	No Data

Have questions about Safety?

Dimensions and Weight

Length	4515 mm
Width	1870 mm
Width with Mirrors	No Data
Height	1650 mm
Wheelbase	2750 mm
Weight Unladen (EU)	1915 kg
Gross Vehicle Weight (GVWR)	No Data
Max. Payload	No Data
Cargo Volume	404 L
Cargo Volume Max	No Data
Cargo Volume Frunk	0 L
Roof Load	No Data
Tow Hitch Possible	Yes
Towing Weight Unbraked	750 kg
Towing Weight Braked	750 kg
Vertical Load Max	150 kg

Have questions about Dimensions and Weight?

Miscellaneous

Price	€41,990
Seats	5 people
Isofix	Yes, 2 seats
Turning Circle	11.2 m
Platform	Toyota e-TNGA
EV Dedicated Platform	Yes
Car Body	SUV
Roof Rails	Yes
Heat Pump	Yes
HP Standard Equipment	Yes

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions. Review the BEVDB methodology for estimate boundaries and source labels. If this model page looks wrong, use Contact and include this page URL plus an official source link when possible.
