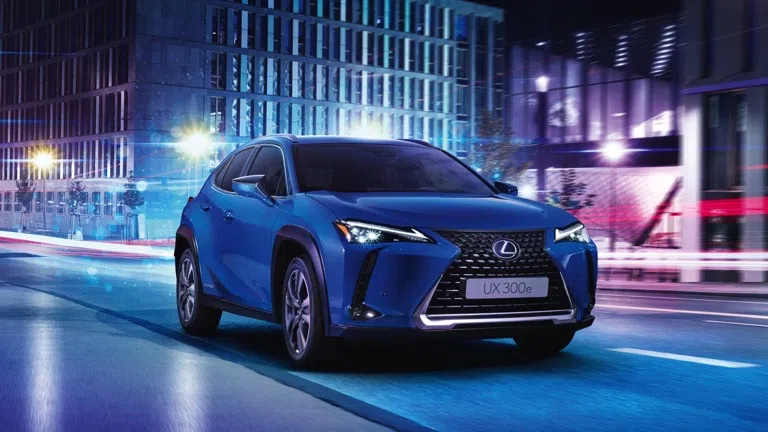

Lexus UX 300e 2020

Usable battery
45 kWh
Nominal battery
54.3 kWh
Drive
FWD
Real range (combined)
256 km
AC charging
6.6 kW
DC fast charging
35 kW

Ownership insights

Commute: 256 km real-world range | typical overnight home charging

Road-trip (10-80%): 1 h 0 min | +35 km in 10 min | peak 35 kW

Home charging (AC): 6.6 kW | 0-100% 7 h 45 min

Seats & cargo: 5 seats | 316 L | max 1231 L

Battery warranty: 10 years / 1,000,000 km

Overview

Lexus UX 300e 2020 overview

Lexus UX 300e 2020 is an electric SUV with FWD and 5 seats. Energy use is 16.9 kWh/100 km, slightly lower than the class median of 17.9 kWh/100 km.

Battery capacity: 45 kWh usable (54.3 kWh nominal). It is based on a 400 V electrical system.

Charging: AC up to 6.6 kW (Type 2); DC up to 35 kW (CHAdeMO). For a typical DC stop, it adds ~35 km in 10 min; Heat pump: No.

Class comparison

Among 503 SUVs, Lexus UX 300e 2020 leans toward longer DC stops and lower peak DC power. 10–80% time is longer than the class median; 60 min vs 30 min; 30 min slower, +100%. Peak DC power is below the class median; 35 kW vs 150 kW; 115 kW lower, -77%. Usable battery capacity is below the class median; 45 kWh vs 77 kWh; 32 kWh lower, -42%. Worth considering if you can live with longer 10–80% stops and lower peak DC power.

Real Range

City - Mild Weather	333 km
City - Cold Weather	247 km
Highway - Mild Weather	234 km
Highway - Cold Weather	180 km

Real range estimates The values shown here are estimates calculated by BEV-Database using WLTP data and the usable battery capacity of the car. Mild weather represents driving in roughly +20 +25 C without heavy use of climate control, while Cold weather reflects winter conditions with cabin heating. Highway assumes steady cruising at about 110 km/h. These figures are not official test results. Real-world range will vary depending on speed, temperature, traffic, road profile, payload, tyres and driving style.

Have questions?

Battery

Nominal Capacity	54.3 kWh
Usable Capacity	45 kWh
Battery Type	Lithium-ion
Architecture	400 V
Warranty Period	10 years
Warranty Mileage	1000000 km
Cathode Material	No Data

Source: Manufacturer

Have questions?

Charging

Home / Destination

Charging Type	Type 2
Port Location	Rear Right
Charge Power	6.6 kW
Charge Time AC (0-100%)	7 h 45 min
Charge Speed (mild)	40 km/h
Charge Speed (cold)	30 km/h

Fast Charging

Fast Charging Port	CHAdeMO
Port Location	Rear Left
Charge Power (max)	35 kW
Charge Power (10-80%)	32 kW
Charge Time DC (10-80%)	1 h 0 min
Charge Speed (mild)	200 km/h
Charge Speed (cold)	150 km/h
Autocharge Supported	No

Plug & Charge

Plug & Charge Supported	No
Supported Protocol	-

Preconditioning

Preconditioning Possible	No
Automatically using Navigation	No

Have questions?

Performance

Acceleration	7.5 sec (0-100 km/h)
Top Speed	160 km/h
Total Power	150 kW (204 PS)
Total Torque	300 Nm
Consumption	16.9 kWh/100 km
Drive	FWD

Have questions?

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L Supported	No
Max. Output Power	-
Exterior Outlet(s)	-
Interior Outlet(s)	-

Vehicle-to-Home (V2H)

V2H via AC Supported	No
Max. Output Power	-
V2H via DC Supported	No
Max. Output Power	-

Vehicle-to-Grid (V2G)

V2G via AC Supported	No
Max. Output Power	-
V2G via DC Supported	No
Max. Output Power	-

Have questions?

Energy Consumption

BEVDB model

Combined real range (estimate)	256 km
Combined Energy Use (estimate)	16.9 kWh/100 km

BEVDB estimates use WLTP-rated (or derived) consumption and usable battery capacity to model city/highway ranges; the combined value averages the four scenarios.

NEDC Real Range

Range

400 km

WLTP Ratings (best case)

Range	315 km
Rated Consumption	16.8 kWh/100 km

WLTP Ratings (worst case)

Range	305 km
Rated Consumption	17 kWh/100 km

Have questions?

Safety (NCAP)

Safety Rating	5/5
Adult Occupant	96%
Child Occupant	85%
Rating Year	2019
Vulnerable Road Users	82%
Safety Assist	77%

Source: Euro NCAP

Have questions?

Dimensions and Weight

Length	4495 mm
Width	1840 mm
Width with Mirrors	2078 mm
Height	1545 mm
Wheelbase	2640 mm
Weight Unladen (EU)	1860 kg
Gross Vehicle Weight (GVWR)	2245 kg
Max. Payload	460 kg
Cargo Volume	316 L
Cargo Volume Max	1231 L
Cargo Volume Frunk	No Data
Roof Load	No Data
Tow Hitch Possible	No
Towing Weight Unbraked	0 kg
Towing Weight Braked	0 kg
Vertical Load Max	0 kg

Have questions?

Miscellaneous

Seats	5 people
Isofix	Yes, 2 seats
Turning Circle	No Data
Platform	Toyota GA-C
EV Dedicated Platform	No
Car Body	SUV
Roof Rails	Yes
Heat Pump	No
HP Standard Equipment	-

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions.
