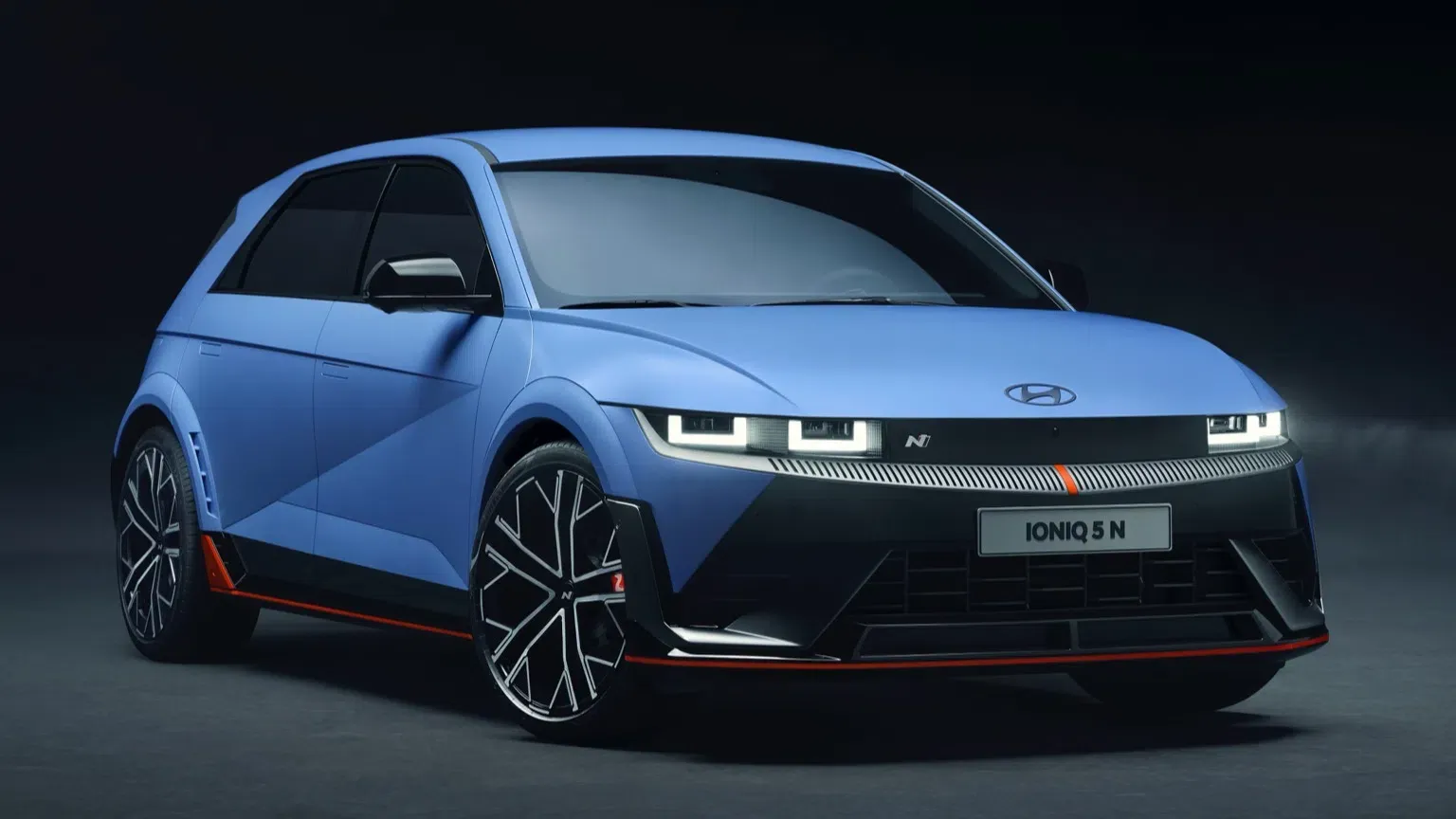

Hyundai IONIQ 5 N 2023

Starting price: €74,900

Specification Road Planner Money Economy Garage Planner

Usable battery
80 kWh
Nominal battery
84 kWh
Drive
AWD
Real range (combined)
336 km
AC charging
11 kW
DC fast charging
263 kW

Ownership insights

Commute: 336 km real-world range | typical overnight home charging

Road-trip (10-80%): 15 min | +196 km in 10 min | peak 263 kW

Home charging (AC): 11 kW | 0-100% 8 h 15 min

Seats & cargo: 5 seats | 480 L | max 1540 L

Battery warranty: 8 years / 160,000 km

Overview

Hyundai IONIQ 5 N 2023 overview

Official WLTP range is 448 km, with 80 kWh usable battery, DC up to 263 kW and typical 10-80% stops near 16 min (est.). Hyundai IONIQ 5 N 2023 is an electric SUV with AWD and 5 seats.

A 10-minute DC top-up (est.) adds 196 km. Energy use is 22.4 kWh/100 km.

Fast charging keeps road-trip stops short, though the range between them suits mixed daily driving best. It uses an 800 V architecture.

Real Range

City - Mild Weather	414 km
City - Cold Weather	311 km
Highway - Mild Weather	316 km
Highway - Cold Weather	263 km

Estimates of actual range. The values given here are BEVDB estimates calculated from WLTP data and usable battery capacity, based on the BEVDB model. The BEVDB real-range card uses four fixed reference scenarios: City (Mild), Highway (Mild), City (Cold), and Highway (Cold). Mild means +20°C (70°F) without intensive climate-control use; cold means -10°C (14°F) with cabin heating. City speed is 50 km/h (30 mph), and highway speed is 110 km/h (70 mph). These figures are not official test results. Actual range will vary depending on speed, temperature, road conditions, road profile, load, tires, and driving style.

Have questions about Real Range?

Battery

Nominal Capacity	84 kWh
Usable Capacity	80 kWh
Battery Type	Lithium-ion
Architecture	800 V
Warranty Period	8 years
Warranty Mileage	160000 km
Cathode Material	NCM

Source: Manufacturer

Have questions about Battery?

Charging

Home / Destination

Charging Type	Type 2
Port Location	Rear Right
Charge Power	11 kW
Charge Time AC (0-100%)	8 h 15 min
Charge Speed (mild)	40 km/h
Charge Speed (cold)	40 km/h

Fast Charging

Fast Charging Port	CCS Combo 2
Port Location	Rear Right
Charge Power (max)	263 kW
Charge Power (10-80%)	205 kW
Charge Time DC (10-80%)	16 min
Charge Speed (mild)	920 km/h
Charge Speed (cold)	740 km/h
Autocharge Supported	Yes

Plug & Charge

Plug & Charge Supported	Announced
Supported Protocol	ISO 15118-2

Preconditioning

Preconditioning Possible	Yes
Automatically using Navigation	Yes

Have questions about Charging?

Charging Times

Home / destination charging — 0–100%

AC full charge: fastest ~8h 15m

Charging option	Power used	Approx. time	Range per hour	Notes
Wall plug · 230V / 10A	2.3 kW	39h 30m	9 km/h	—
1-phase 16A · 230V / 16A	3.7 kW	24h 35m	15 km/h	—
1-phase 32A · 230V / 32A	7.4 kW	12h 15m	29 km/h	—
3-phase 16A · 400V / 3x16A	11 kW	8h 15m	43 km/h	—
3-phase 32A · 400V / 3x32A	11 kW	8h 15m	43 km/h	Limited by vehicle

Fast charging — 10–80%

Fastest DC 10–80%: ~16 min

Charging option	Power used	Approx. time	Range per hour	Notes
CCS 50 kWCCS connector	50 kW avg.	1h 5m	224 km/h	—
CCS 150 kWCCS connector	126 kW avg.	27 min	564 km/h	Limited by charger
CCS 350 kWCCS connector	205 kW avg.	16 min	918 km/h	Limited by vehicle

Estimated charging times are based on usable battery capacity, charging power and vehicle charging limits. Peak DC power is usually reached only briefly; average 10–80% power is more useful for estimating real charging time. Actual charging speed can vary by charger output, battery temperature, state of charge, weather, software and battery condition.

Performance

Acceleration	3.4 sec (0-100 km/h)
Top Speed	260 km/h
Total Power	478 kW (650 PS)
Total Torque	740 Nm
Drive	AWD

Have questions about Performance?

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L Supported	Yes
Max. Output Power	3.6 kW
Exterior Outlet(s)	1 x Type 2 (Adapter)
Interior Outlet(s)	1 x Standard Socket

Vehicle-to-Home (V2H)

V2H via AC Supported	No
Max. Output Power	-
V2H via DC Supported	No
Max. Output Power	-

Vehicle-to-Grid (V2G)

V2G via AC Supported	No
Max. Output Power	-
V2G via DC Supported	No
Max. Output Power	-

Have questions about Bidirectional Charging?

Energy Consumption

BEVDB model

Combined real range (estimate)	336 km
Combined Energy Use (estimate)	23.7 kWh/100 km

BEVDB estimates use WLTP-rated (or derived; falls back to NEDC when WLTP is missing) consumption and usable battery capacity to model city/highway ranges; the combined value is a weighted mix of city/highway and mild/cold scenarios. See the methodology and data sources for inputs, official source boundaries, fallback rules, and versioning.

WLTP Ratings (worst case)

Range	448 km
Rated Consumption	22.4 kWh/100 km

Have questions about Energy Consumption?

Safety (NCAP)

Safety Rating	5/5
Adult Occupant	88%
Child Occupant	86%
Rating Year	2021
Vulnerable Road Users	63%
Safety Assist	88%

Source: Euro NCAP

Have questions about Safety?

Dimensions and Weight

Length	4715 mm
Width	1940 mm
Width with Mirrors	2152 mm
Height	1585 mm
Wheelbase	3000 mm
Weight Unladen (EU)	2225 kg
Gross Vehicle Weight (GVWR)	2660 kg
Max. Payload	510 kg
Cargo Volume	480 L
Cargo Volume Max	1540 L
Cargo Volume Frunk	0 L
Roof Load	0 kg
Tow Hitch Possible	No
Towing Weight Unbraked	0 kg
Towing Weight Braked	0 kg
Vertical Load Max	0 kg

Have questions about Dimensions and Weight?

Miscellaneous

Price	€74,900
Seats	5 people
Isofix	Yes, 2 seats
Turning Circle	12.4 m
Platform	HMG E-GMP
EV Dedicated Platform	Yes
Car Body	SUV
Roof Rails	No
Heat Pump	Yes
HP Standard Equipment	Yes

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions. Review the BEVDB methodology for estimate boundaries and source labels. If this model page looks wrong, use Contact and include this page URL plus an official source link when possible.
