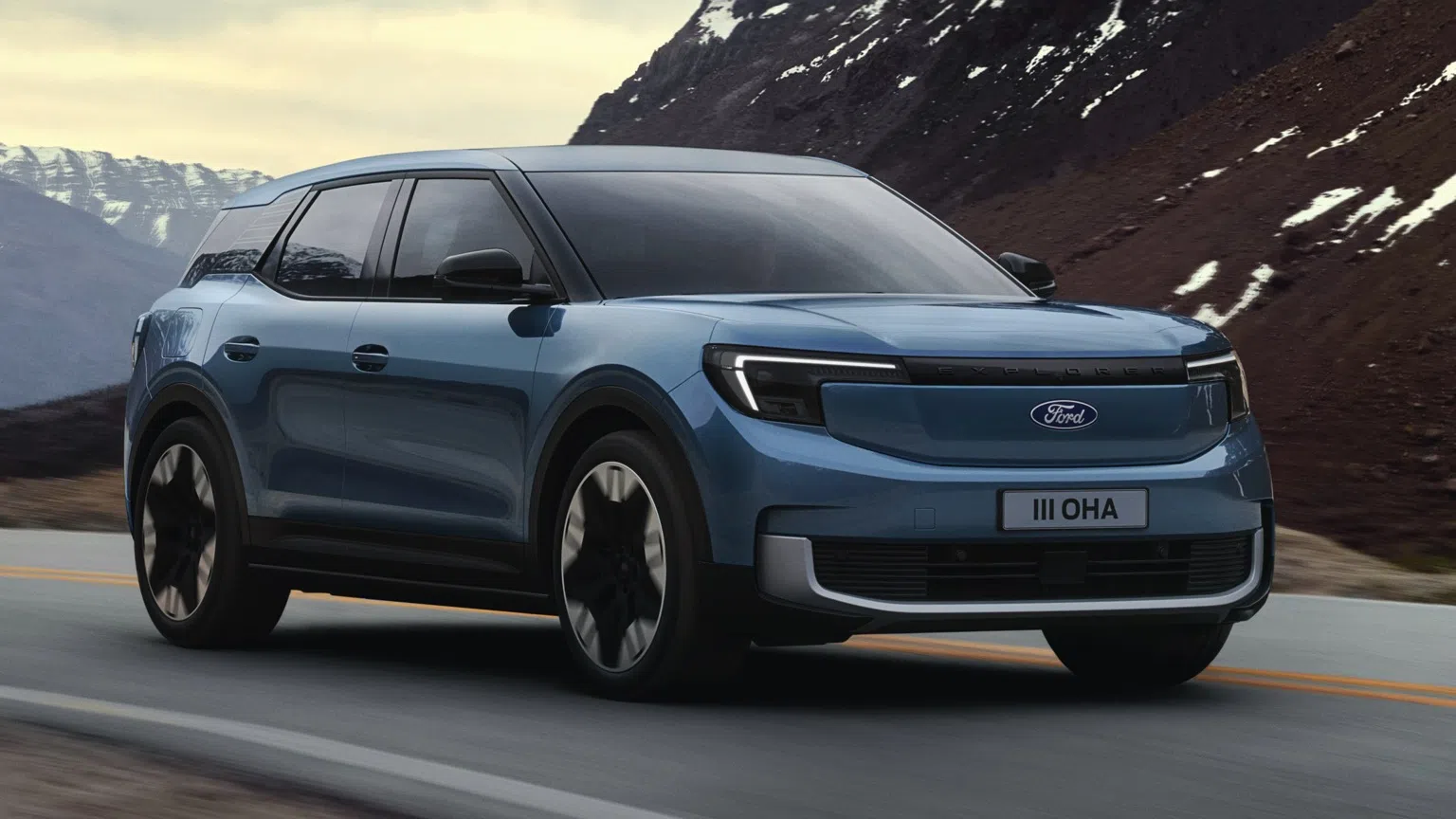

Ford Explorer Extended Range RWD 2024

Usable battery
77 kWh
Nominal battery
82 kWh
Drive
RWD
Real range (combined)
511 km
AC charging
11 kW
DC fast charging
185 kW

Ownership insights

Commute: 511 km real-world range | typical overnight home charging

Road-trip (10-80%): 25 min | +213 km in 10 min | peak 185 kW

Home charging (AC): 11 kW | 0-100% 7 h 55 min

Seats & cargo: 5 seats | 536 L | max 1422 L

Battery warranty: 8 years / 160,000 km

Overview

Ford Explorer Extended Range RWD 2024 overview

Ford Explorer Extended Range RWD 2024 is offered as an electric SUV with RWD and a 5-seat cabin. Efficiency is a highlight: 14.5 kWh/100 km, much lower than the class median of 17.9 kWh/100 km.

Battery: 77 kWh usable (82 kWh nominal). Electrical system: 400 V.

Charging includes AC charging up to 11 kW (Type 2); DC fast charging up to 185 kW (CCS Combo 2). For DC fast charging, it adds ~213 km in 10 min; Performance: 0-100 km/h in 6.4 s; top speed 180 km/h.

Class comparison

Ford Explorer Extended Range RWD 2024 compares with 503 SUVs and stands out for more range in 10 min and higher peak DC power. Range added in 10 min is higher than the class median; 213 km vs 141 km; 72 km higher, +51%. Peak DC power is above the class median; 185 kW vs 150 kW; 35 kW higher, +23%. WLTP range is above the class median; 555 km vs 461 km; 94 km higher, +20%. Strengths lean toward more range in a 10-minute stop, higher peak DC power, and longer stints between charges.

Real Range

City - Mild Weather	570 km
City - Cold Weather	492 km
Highway - Mild Weather	466 km
Highway - Cold Weather	359 km

Real range estimates The values shown here are estimates calculated by BEV-Database using WLTP data and the usable battery capacity of the car. Mild weather represents driving in roughly +20 +25 C without heavy use of climate control, while Cold weather reflects winter conditions with cabin heating. Highway assumes steady cruising at about 110 km/h. These figures are not official test results. Real-world range will vary depending on speed, temperature, traffic, road profile, payload, tyres and driving style.

Have questions?

Battery

Nominal Capacity	82 kWh
Usable Capacity	77 kWh
Battery Type	Lithium-ion
Architecture	400 V
Warranty Period	8 years
Warranty Mileage	160000 km
Cathode Material	NCM

Source: Manufacturer

Have questions?

Charging

Home / Destination

Charging Type	Type 2
Port Location	Rear Right
Charge Power	11 kW
Charge Time AC (0-100%)	7 h 55 min
Charge Speed (mild)	70 km/h
Charge Speed (cold)	50 km/h

Fast Charging

Fast Charging Port	CCS Combo 2
Port Location	Rear Right
Charge Power (max)	185 kW
Charge Power (10-80%)	135 kW
Charge Time DC (10-80%)	25 min
Charge Speed (mild)	1000 km/h
Charge Speed (cold)	730 km/h
Autocharge Supported	No

Plug & Charge

Plug & Charge Supported	Yes
Supported Protocol	ISO 15118-2

Preconditioning

Preconditioning Possible	Yes
Automatically using Navigation	Yes

Have questions?

Performance

Acceleration	6.4 sec (0-100 km/h)
Top Speed	180 km/h
Total Power	210 kW (286 PS)
Total Torque	545 Nm
Consumption	14.5 kWh/100 km
Drive	RWD

Have questions?

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L Supported	No
Max. Output Power	-
Exterior Outlet(s)	-
Interior Outlet(s)	-

Vehicle-to-Home (V2H)

V2H via AC Supported	No
Max. Output Power	-
V2H via DC Supported	No
Max. Output Power	-

Vehicle-to-Grid (V2G)

V2G via AC Supported	No
Max. Output Power	-
V2G via DC Supported	No
Max. Output Power	-

Have questions?

Energy Consumption

BEVDB model

Combined real range (estimate)	511 km
Combined Energy Use (estimate)	14.5 kWh/100 km

BEVDB estimates use WLTP-rated (or derived) consumption and usable battery capacity to model city/highway ranges; the combined value averages the four scenarios.

WLTP Ratings (best case)

Range	602 km
Rated Consumption	13.9 kWh/100 km

WLTP Ratings (worst case)

Range	555 km
Rated Consumption	15.1 kWh/100 km

Have questions?

Safety (NCAP)

Safety Rating	5/5
Adult Occupant	89%
Child Occupant	86%
Rating Year	2024
Vulnerable Road Users	80%
Safety Assist	72%

Source: Euro NCAP

Have questions?

Dimensions and Weight

Length	4468 mm
Width	1871 mm
Width with Mirrors	2063 mm
Height	1630 mm
Wheelbase	2767 mm
Weight Unladen (EU)	2090 kg
Gross Vehicle Weight (GVWR)	2675 kg
Max. Payload	660 kg
Cargo Volume	536 L
Cargo Volume Max	1422 L
Cargo Volume Frunk	0 L
Roof Load	75 kg
Tow Hitch Possible	Yes
Towing Weight Unbraked	750 kg
Towing Weight Braked	1000 kg
Vertical Load Max	75 kg

Have questions?

Miscellaneous

Seats	5 people
Isofix	Yes, 2 seats
Turning Circle	9.7 m
Platform	VW MEB
EV Dedicated Platform	Yes
Car Body	SUV
Roof Rails	Yes
Heat Pump	Yes
HP Standard Equipment	No, optional

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions.
