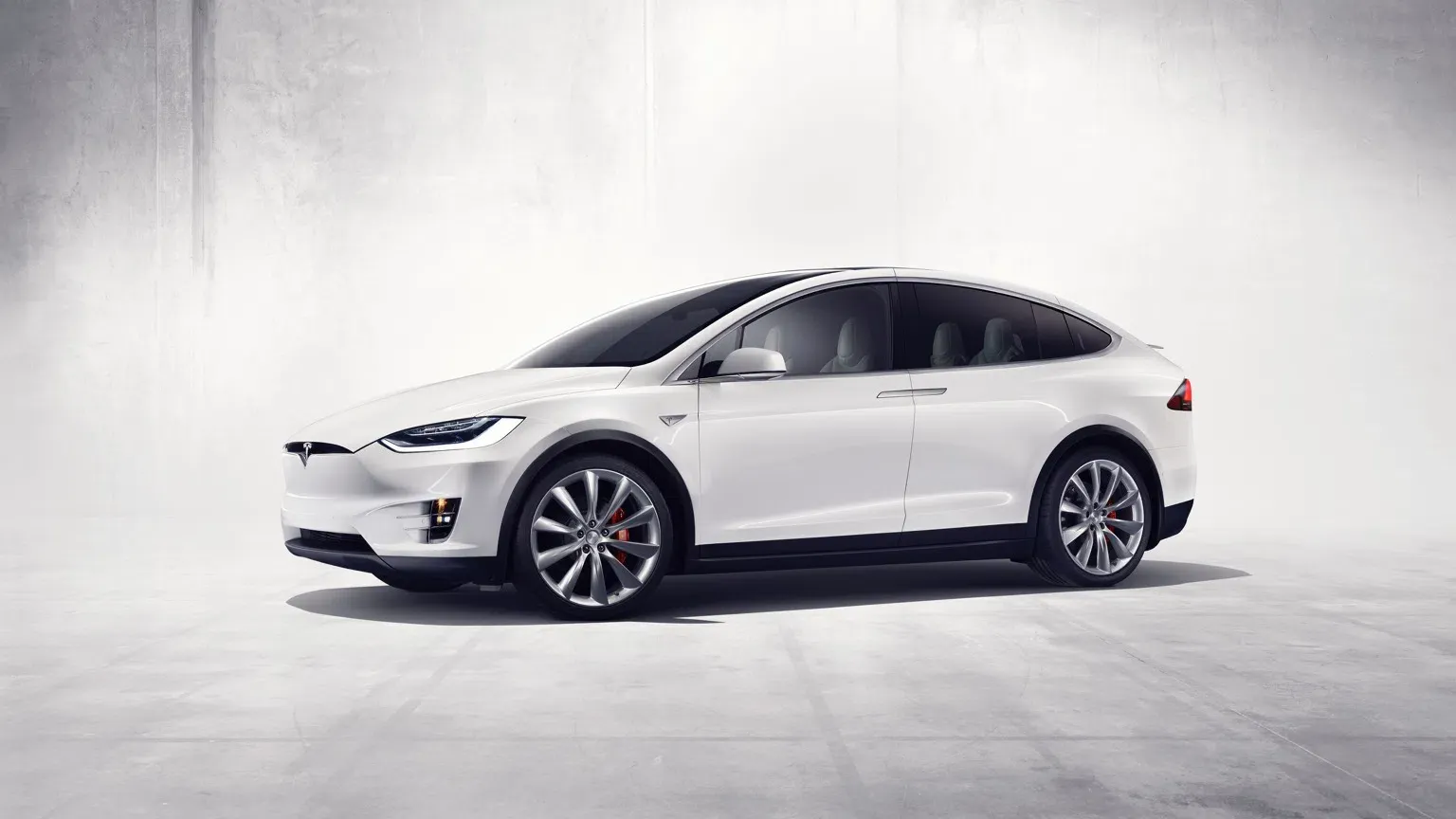

Tesla Model X Performance 2020

Starting price: $99,990

Specification Road Planner Money Economy Garage Planner

Usable battery
98 kWh
Nominal battery
103 kWh
Drive
AWD
Real range (combined)
260 miles
AC charging
11.5 kW
DC fast charging
250 kW

Ownership insights

Commute: 260 mi real-world range | longer home charging sessions

Road-trip (10-80%): 35 min (est.) | +130 mi in 10 min | peak 250 kW

Home charging (AC): 11.5 kW | 0-100% 9 h 40 min

Seats & cargo: 7 seats | 15 cu ft | max 92.3 cu ft

Battery warranty: 8 years / 150,000 miles

Overview

Tesla Model X Performance 2020 overview

Official EPA range is 305 mi, with 98 kWh usable battery, DC up to 250 kW (NACS) and typical 10-80% stops near 33 min (est.). Tesla Model X Performance 2020 is an electric SUV with AWD and 7 seats.

A 10-minute DC top-up (est.) adds 130 miles. Combined efficiency is 90 MPGe, or about 37.6 kWh/100 mi.

Well-suited to commuting and occasional longer trips. Battery preconditioning supports navigation-based routing.

Real Range

City - Mild Weather	291 miles
City - Cold Weather	193 miles
Highway - Mild Weather	278 miles
Highway - Cold Weather	217 miles

Estimates of actual range. The values given here are BEVDB estimates calculated from EPA data and usable battery capacity, based on the BEVDB model. The BEVDB real-range card uses four fixed reference scenarios: City (Mild), Highway (Mild), City (Cold), and Highway (Cold). Mild means +20°C (70°F) without intensive climate-control use; cold means -10°C (14°F) with cabin heating. City speed is 50 km/h (30 mph), and highway speed is 110 km/h (70 mph). These figures are not official test results. Actual range will vary depending on speed, temperature, road conditions, road profile, load, tires, and driving style.

Have questions about Real Range?

Battery

Nominal Capacity	103 kWh
Usable Capacity	98 kWh
Battery Type	Lithium-ion
Architecture	400 V
Warranty Period	8 years
Warranty Mileage	150000 miles
Cathode Material	NCA

Source: Manufacturer

Have questions about Battery?

Charging

Home / Destination

Charging Type	NACS
Port Location	Rear Left
Charge Power	11.5 kW
Charge Time AC (0-100%)	9 h 40 min
Charge Speed (mild)	20 miles/hour
Charge Speed (cold)	10 miles/hour

Fast Charging

Fast Charging Port	NACS
Port Location	Rear Left
Charge Power (max)	250 kW
Charge Power (10-80%)	125 kW
Charge Time DC (10-80%)	33 min
Charge Speed (mild)	230 miles/hour
Charge Speed (cold)	170 miles/hour
Autocharge Supported	No

Plug & Charge

Plug & Charge Supported	No
Supported Protocol	No Data

Preconditioning

Preconditioning Possible	Yes
Automatically using Navigation	Yes

Have questions about Charging?

Charging Times

Home / destination charging — 0–100%

AC full charge: fastest ~9h 40m

Charging option	Power used	Approx. time	Range per hour	Notes
Level 1 · 120V / 12A	1.4 kW	79h 35m	2 mi/h	—
Level 1 · 120V / 16A	1.9 kW	58h 35m	3 mi/h	—
Level 2 · 240V / 32A	7.7 kW	14h 30m	13 mi/h	—
Level 2 · 240V / 40A	9.6 kW	11h 35m	16 mi/h	—
Level 2 · 240V / 48A	11.5 kW	9h 40m	19 mi/h	—

Fast charging — 10–80%

Fastest DC 10–80%: ~33 min

Charging option	Power used	Approx. time	Range per hour	Notes
DC 50 kWNACS connector	50 kW avg.	1h 20m	93 mi/h	—
DC 150 kWNACS connector	125 kW avg.	33 min	232 mi/h	Limited by charger
DC 250+ kWNACS connector	125 kW avg.	33 min	232 mi/h	Vehicle-limited above 250 kW

Estimated charging times are based on usable battery capacity, charging power and vehicle charging limits. Peak DC power is usually reached only briefly; average 10–80% power is more useful for estimating real charging time. Actual charging speed can vary by charger output, battery temperature, state of charge, weather, software and battery condition.

Performance

Acceleration	2.9 sec (0-60 mph)
Top Speed	155.3 mph
Total Power	580 kW (789 PS)
Total Torque	840.8 lb-ft
EPA Consumption	37.6 kWh/100 mi
Drive	AWD

Have questions about Performance?

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L Supported	No
Max. Output Power	-
Exterior Outlet(s)	-
Interior Outlet(s)	-

Vehicle-to-Home (V2H)

V2H via AC Supported	No
Max. Output Power	-
V2H via DC Supported	No
Max. Output Power	-

Vehicle-to-Grid (V2G)

V2G via AC Supported	No
Max. Output Power	-
V2G via DC Supported	No
Max. Output Power	-

Have questions about Bidirectional Charging?

Energy Consumption

BEVDB model

Combined real range (estimate)	260.4 miles
Combined Energy Use (estimate)	37.5 kWh/100 mi

BEVDB estimates use EPA-rated (or derived) consumption and usable battery capacity to model city/highway ranges; the combined value is a weighted mix of city/highway and mild/cold scenarios. See the methodology and data sources for inputs, official source boundaries, fallback rules, and versioning.

EPA

EPA Range	305 mi
MPGe City	90 MPGe
MPGe Highway	89 MPGe
MPGe Combined	90 MPGe
Energy Use	37.6 kWh/100 mi

Source: EPA

Have questions about Energy Consumption?

Safety

Side crash:	5 stars
Front crash:	5 stars
Rollover resistance:	5 stars
Safety rating:	5 stars
Rating year:	2020

Source: NHTSA

Have questions about Safety?

Dimensions and Weight

Length	199.1 in
Width	78.7 in
Width with Mirrors	89.4 in
Height	66.3 in
Wheelbase	116.7 in
Weight	5374.9 lbs
Gross Vehicle Weight (GVWR)	6613.9 lbs
Max. Payload	1239 lbs
Cargo Volume	15 ft³
Cargo Volume Max	92.3 ft³
Cargo Volume Frunk	6.6 ft³
Roof Load	165.3 lbs
Tow Hitch Possible	Yes
Towing Weight Unbraked	1653.5 lbs
Towing Weight Braked	4960.4 lbs
Vertical Load Max	119 lbs

Have questions about Dimensions and Weight?

Miscellaneous

Price	$99,990
Seats	7
LATCH	Yes 2 seats
Turning Circle	40.7 ft
Platform	TESLA S/X
EV Dedicated Platform	Yes
Car Body	SUV
Roof Rails	No
Heat Pump	No
HP Standard Equipment	-

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions. Review the BEVDB methodology for estimate boundaries and source labels. If this model page looks wrong, use Contact and include this page URL plus an official source link when possible.
