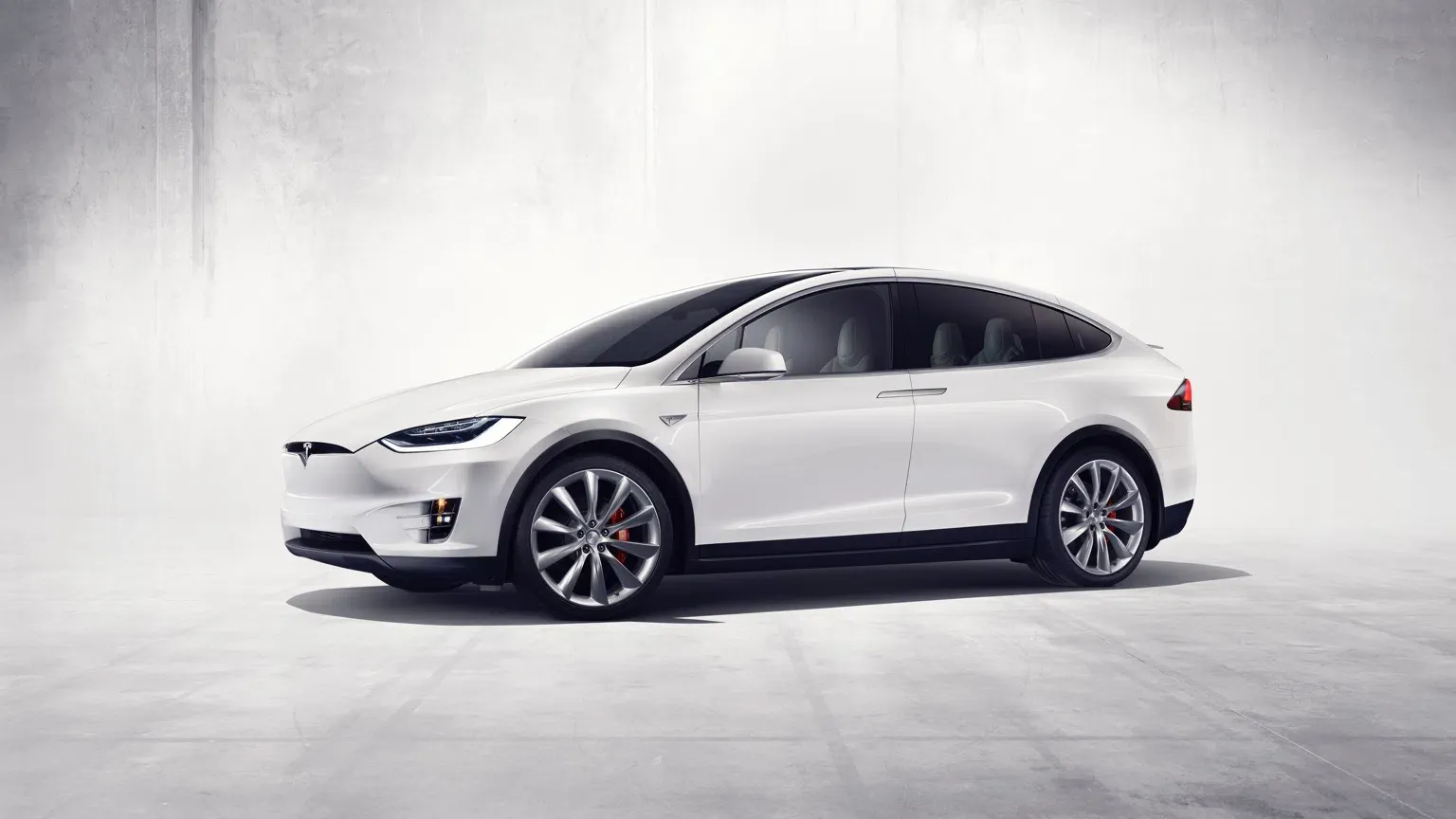

Tesla Model X 100D

2017–2019

Starting price: $98,500

Specification EV Trip Calculator EV Running Cost Calculator EV Garage Planner

Usable battery
95 kWh
Nominal battery
100 kWh
Drive
AWD
Real range (combined)
254 miles
AC charging
11.5 kW
DC fast charging
250 kW

Range Reality

Official EPA range: 295 mi
BEVDB mixed estimate: 254 mi
Cold highway estimate: 228 mi
Official → BEVDB: -41 mi / -14%

Charging Reality

10–80%: 32 min (est.)
Range added in 15 min: 178 mi
Average DC power: 125 kW
Home 0–100%: 9 h 23 min

Practical Ownership

Seats: 7
Cargo: 88 cu ft
Braked towing: 4,960 lbs
Payload: 1,369 lbs

City - Mild Weather	270 miles
City - Cold Weather	186 miles
Highway - Mild Weather	281 miles
Highway - Cold Weather	228 miles

Estimates of actual range. The values given here are BEVDB estimates calculated from EPA data and usable battery capacity, based on the BEVDB model. The BEVDB real-range card uses four fixed reference scenarios: City (Mild), Highway (Mild), City (Cold), and Highway (Cold). Mild means +20°C (70°F) without intensive climate-control use; cold means -10°C (14°F) with cabin heating. City speed is 50 km/h (30 mph), and highway speed is 110 km/h (70 mph). These figures are not official test results. Actual range will vary depending on speed, temperature, road conditions, road profile, load, tires, and driving style.

Home / Destination

Charging Type	NACS
Port Location	Rear Left
Charge Power	11.5 kW
Charge Time AC (0-100%)	9 h 23 min
Charge Speed (mild)	20 miles/hour
Charge Speed (cold)	10 miles/hour

Fast Charging

Fast Charging Port	NACS
Port Location	Rear Left
Charge Power (max)	250 kW
Charge Power (10-80%)	125 kW
Charge Time DC (10-80%)	32 min
Charge Speed (mild)	240 miles/hour
Charge Speed (cold)	180 miles/hour
Autocharge Supported	No

Plug & Charge

Plug & Charge Supported

Preconditioning

Preconditioning Possible	Yes
Automatically using Navigation	Yes

Home / destination charging — 0–100%

AC full charge: fastest ~9h 25m

Charging option	Power used	Approx. time	Range per hour	Notes
Level 1 · 120V / 12A	1.4 kW	77h 5m	2 mi/h	—
Level 1 · 120V / 16A	1.9 kW	56h 50m	3 mi/h	—
Level 2 · 240V / 32A	7.7 kW	14h	13 mi/h	—
Level 2 · 240V / 40A	9.6 kW	11h 15m	16 mi/h	—
Level 2 · 240V / 48A	11.5 kW	9h 25m	19 mi/h	—

Fast charging — 10–80%

Fastest DC 10–80%: ~32 min

Charging option	Power used	Approx. time	Range per hour	Notes
DC 50 kWNACS connector	50 kW avg.	1h 20m	95 mi/h	—
DC 150 kWNACS connector	125 kW avg.	32 min	238 mi/h	Limited by charger
DC 250+ kWNACS connector	125 kW avg.	32 min	238 mi/h	Vehicle-limited above 250 kW

Estimated charging times are based on usable battery capacity, charging power and vehicle charging limits. Peak DC power is usually reached only briefly; average 10–80% power is more useful for estimating real charging time. Actual charging speed can vary by charger output, battery temperature, state of charge, weather, software and battery condition.

BEVDB model

Combined real range (estimate)	254 miles
Combined Energy Use (estimate)	37.3 kWh/100 mi

BEVDB estimates use EPA-rated (or derived) consumption and usable battery capacity to model city/highway ranges; the combined value is a weighted mix of city/highway and mild/cold scenarios. See the methodology and data sources for inputs, official source boundaries, fallback rules, and versioning.

EPA

EPA Range	295 mi
MPGe City	86 MPGe
MPGe Highway	89 MPGe
MPGe Combined	87 MPGe
Energy Use	38.7 kWh/100 mi

Source: EPA

Other Tesla Model X versions

See all Tesla Model X versions →

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions. Review the BEVDB methodology for estimate boundaries and source labels. If this model page looks wrong, use Report incorrect data and include this page URL plus an official source link when possible.

Nominal Capacity	100 kWh
Usable Capacity	95 kWh
Battery Type	Lithium-ion
Architecture	400 V

Acceleration	4.9 sec (0-60 mph)
Top Speed	155.3 mph
Total Power	311 kW (423 PS)
Total Torque	486.8 lb-ft
EPA Consumption	38.7 kWh/100 mi
Drive	AWD

Side crash	5 stars
Front crash	5 stars
Rollover resistance	5 stars
Safety rating	5 stars
Rating year	2017

Length	198.3 in
Width	81.5 in
Height	66.3 in
Wheelbase	116.7 in
Weight	5584.3 lbs
Gross Vehicle Weight (GVWR)	6788 lbs
Max. Payload	1369.1 lbs
Cargo Volume Max	88 cu ft
Roof Load	0 lbs
Tow Hitch Possible	Yes
Towing Weight Unbraked	992.1 lbs
Towing Weight Braked	4960.4 lbs

Price	$98,500
Seats	7
LATCH	Yes 4 seats
Turning Circle	40.7 ft
Car Body	SUV
Roof Rails	No

Tesla Model X 100D

Range Reality

Charging Reality

Practical Ownership

Home / Destination

Fast Charging

Plug & Charge

Preconditioning

Home / destination charging — 0–100%

Fast charging — 10–80%

Vehicle-to-Load (V2L)

Vehicle-to-Home (V2H)

Vehicle-to-Grid (V2G)

BEVDB model

EPA

Other Tesla Model X versions

V2H via AC Supported	No
V2H via DC Supported	No

V2G via AC Supported	No
V2G via DC Supported	No
