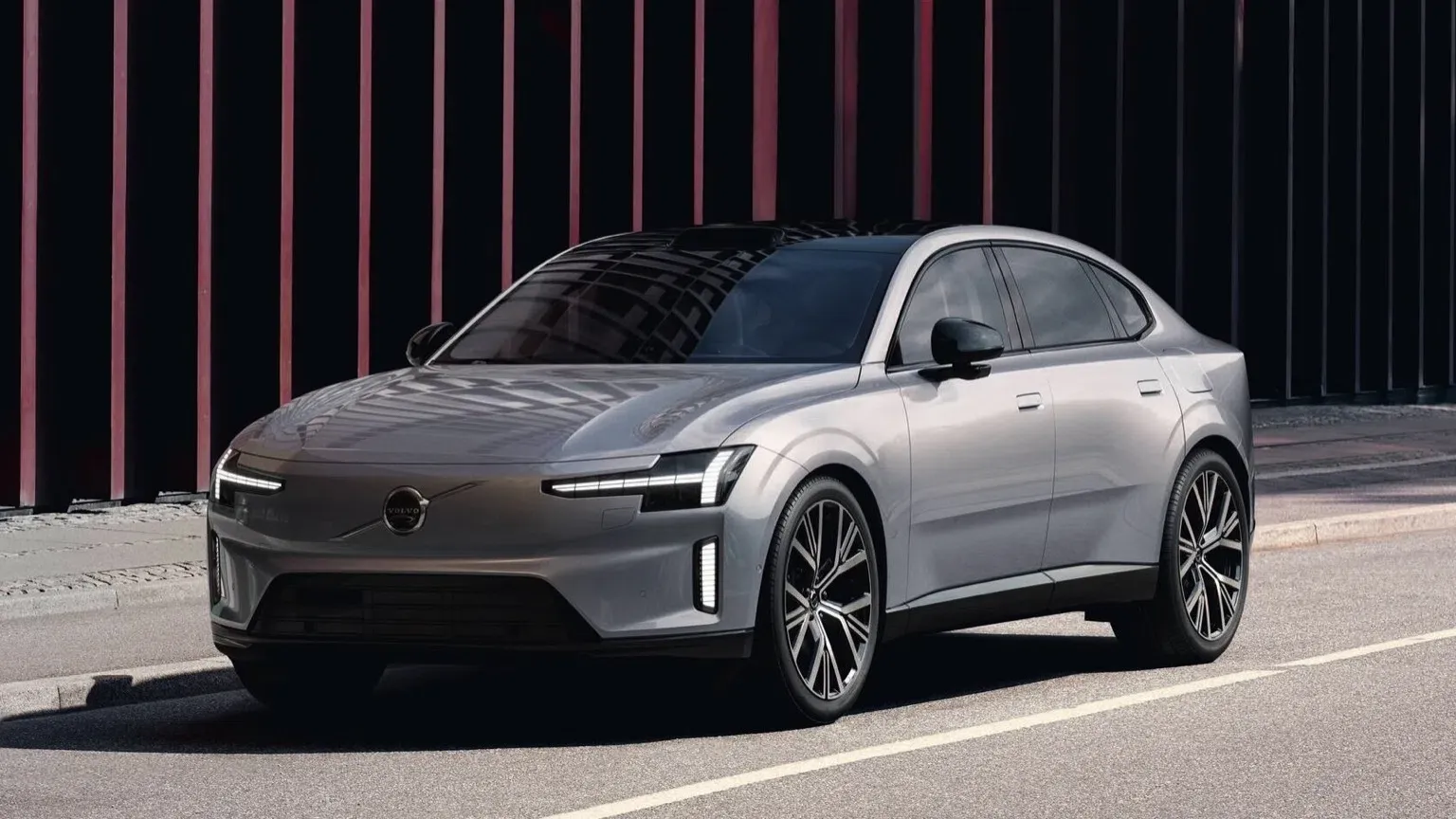

Volvo ES90 Twin Motor 2025

Usable battery
102 kWh
Nominal battery
106 kWh
Drive
AWD
Real range (combined)
574 km
AC charging
11 kW
DC fast charging
350 kW

Ownership insights

Commute: 574 km real-world range | longer home charging sessions

Road-trip (10-80%): 20 min | +341 km in 10 min | peak 350 kW

Home charging (AC): 11 kW | 0-100% 10 h 30 min

Seats & cargo: 5 seats | 446 L | max 1256 L

Battery warranty: 8 years / 160,000 km

Overview

Volvo ES90 Twin Motor 2025 overview

Volvo ES90 Twin Motor 2025 comes as an electric liftback with AWD and 5 seats. Range is a strong point: 700 km - 700 km, well above the class median of 520 km.

Battery: 102 kWh usable (106 kWh nominal). Electrical system: 800 V.

Charging includes AC charging up to 11 kW (Type 2); DC fast charging up to 350 kW (CCS Combo 2). For a typical DC stop, it adds ~341 km in 10 min; Frunk volume has 22 L.

Class comparison

Within a group of 66 liftbacks, Volvo ES90 Twin Motor 2025 stands out for higher peak DC power and more range in 10 min. Peak DC power is above the class median; 350 kW vs 200 kW; 150 kW higher, +75%. Range added in 10 min is higher than the class median; 341 km vs 195 km; 146 km higher, +75%. WLTP range is above the class median; 700 km vs 520 km; 180 km higher, +35%. Strengths lean toward higher peak DC power, more range in a 10-minute stop, and longer stints between charges.

Real Range

City - Mild Weather	816 km
City - Cold Weather	552 km
Highway - Mild Weather	523 km
Highway - Cold Weather	403 km

Real range estimates The values shown here are estimates calculated by BEV-Database using WLTP data and the usable battery capacity of the car. Mild weather represents driving in roughly +20 +25 C without heavy use of climate control, while Cold weather reflects winter conditions with cabin heating. Highway assumes steady cruising at about 110 km/h. These figures are not official test results. Real-world range will vary depending on speed, temperature, traffic, road profile, payload, tyres and driving style.

Have questions?

Battery

Nominal Capacity	106 kWh
Usable Capacity	102 kWh
Battery Type	Lithium-ion
Architecture	800 V
Warranty Period	8 years
Warranty Mileage	160000 km
Cathode Material	NCM

Source: Manufacturer

Have questions?

Charging

Home / Destination

Charging Type	Type 2
Port Location	Rear Left
Charge Power	11 kW
Charge Time AC (0-100%)	10 h 30 min
Charge Speed (mild)	60 km/h
Charge Speed (cold)	40 km/h

Fast Charging

Fast Charging Port	CCS Combo 2
Port Location	Rear Left
Charge Power (max)	350 kW
Charge Power (10-80%)	225 kW
Charge Time DC (10-80%)	20 min
Charge Speed (mild)	1410 km/h
Charge Speed (cold)	1030 km/h
Autocharge Supported	No Data

Plug & Charge

Plug & Charge Supported	Yes
Supported Protocol	ISO 15118-2

Preconditioning

Preconditioning Possible	Yes
Automatically using Navigation	Yes

Have questions?

Performance

Acceleration	5.5 sec (0-100 km/h)
Top Speed	180 km/h
Total Power	330 kW (449 PS)
Total Torque	670 Nm
Consumption	17.1 kWh/100 km
Drive	AWD

Have questions?

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L Supported	No Data
Max. Output Power	No Data
Exterior Outlet(s)	No Data
Interior Outlet(s)	No Data

Vehicle-to-Home (V2H)

V2H via AC Supported	No Data
Max. Output Power	No Data
V2H via DC Supported	No Data
Max. Output Power	No Data

Vehicle-to-Grid (V2G)

V2G via AC Supported	No Data
Max. Output Power	No Data
V2G via DC Supported	No Data
Max. Output Power	No Data

Have questions?

Energy Consumption

BEVDB model

Combined real range (estimate)	574 km
Combined Energy Use (estimate)	17.1 kWh/100 km

BEVDB estimates use WLTP-rated (or derived) consumption and usable battery capacity to model city/highway ranges; the combined value averages the four scenarios.

WLTP Ratings (best case)

Range	700 km
Rated Consumption	17.1 kWh/100 km

WLTP Ratings (worst case)

Range	700 km
Rated Consumption	17.1 kWh/100 km

Have questions?

Safety (NCAP)

Safety Rating	No Data
Adult Occupant	No Data
Child Occupant	No Data
Rating Year	No Data
Vulnerable Road Users	No Data
Safety Assist	No Data

Source: Euro NCAP

Have questions?

Dimensions and Weight

Length	5000 mm
Width	1942 mm
Width with Mirrors	2120 mm
Height	1546 mm
Wheelbase	3102 mm
Weight Unladen (EU)	2628 kg
Gross Vehicle Weight (GVWR)	3040 kg
Max. Payload	487 kg
Cargo Volume	446 L
Cargo Volume Max	1256 L
Cargo Volume Frunk	22 L
Roof Load	75 kg
Tow Hitch Possible	Yes
Towing Weight Unbraked	750 kg
Towing Weight Braked	2000 kg
Vertical Load Max	100 kg

Have questions?

Miscellaneous

Seats	5
Isofix	Yes, 2 seats
Turning Circle	11.8 m
Platform	Volvo SPA2
EV Dedicated Platform	Yes
Car Body	Liftback
Roof Rails	No
Heat Pump	Yes
HP Standard Equipment	Yes

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions.
