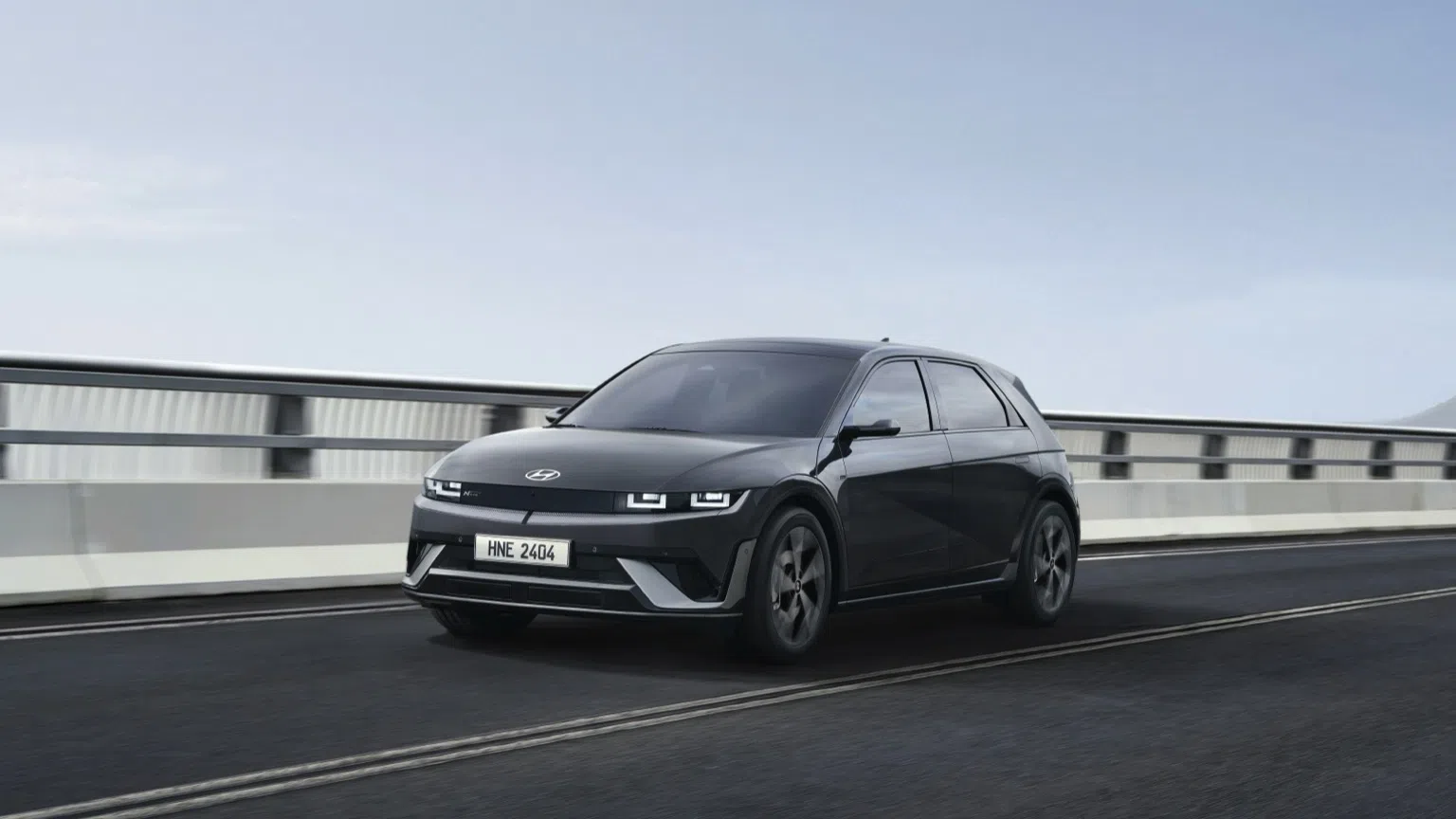

Hyundai IONIQ 5 Project 45 2021

Starting price: €59,550

Specification Road Planner EV Running Cost Calculator EV Garage Planner

Usable battery
70 kWh
Nominal battery
72.6 kWh
Drive
AWD
Real range (combined)
332 km
AC charging
11 kW
DC fast charging
221 kW

Ownership summary

Verdict:

Hyundai IONIQ 5 Project 45 2021 fits the role of an AWD electric SUV with a family-first ownership profile for daily driving, home charging and family use. The range story is the difference between 430 km official, about 332 km in mixed use and about 253 km in cold highway driving.

In daily use, home charging takes about 7 h 14 min from 0-100%; on trips, the 10-80% DC estimate is about 16 min (est.), which should make highway stops manageable. The practical side is documented with 5 seats, 531-1591 L cargo and 8 years / 160,000 km battery warranty. The official WLTP number is optimistic compared with the BEVDB mixed estimate. Range confidence is high and the tracked ownership specs are complete.

Best fit

Daily drivingHome chargingFamily use

Main caveatThe official WLTP number is optimistic compared with the BEVDB mixed estimate.

Range reality

Official WLTP range: 430 km
BEVDB mixed estimate: 332 km
Cold highway estimate: 253 km
Official vs BEVDB gap: -98 km / -23%

Charging reality

Home charging: 0-100% 7 h 14 min
Fast charging: 10-80% 16 min (est.)
10-80% range added: 234 km Based on BEVDB combined consumption

Practical ownership

Seats: 5
Cargo: 531-1591 L
Battery warranty: 8 years / 160,000 km

Data quality

Range confidence: High
Specs completeness: Complete
Estimate basis: WLTP data + BEVDB model
Missing key data: None of the tracked key fields

Real Range

City - Mild Weather	426 km
City - Cold Weather	299 km
Highway - Mild Weather	307 km
Highway - Cold Weather	253 km

Estimates of actual range. The values given here are BEVDB estimates calculated from WLTP data and usable battery capacity, based on the BEVDB model. The BEVDB real-range card uses four fixed reference scenarios: City (Mild), Highway (Mild), City (Cold), and Highway (Cold). Mild means +20°C (70°F) without intensive climate-control use; cold means -10°C (14°F) with cabin heating. City speed is 50 km/h (30 mph), and highway speed is 110 km/h (70 mph). These figures are not official test results. Actual range will vary depending on speed, temperature, road conditions, road profile, load, tires, and driving style.

Have questions about Real Range?

Battery

Nominal Capacity	72.6 kWh
Usable Capacity	70 kWh
Battery Type	Lithium-ion
Architecture	800 V
Warranty Period	8 years
Warranty Mileage	160000 km
Cathode Material	NCM

Source: Manufacturer

Have questions about Battery?

Charging

Home / Destination

Charging Type	Type 2
Port Location	Rear Right
Charge Power	11 kW
Charge Time AC (0-100%)	7 h 14 min
Charge Speed (mild)	50 km/h
Charge Speed (cold)	40 km/h

Fast Charging

Fast Charging Port	CCS Combo 2
Port Location	Rear Right
Charge Power (max)	221 kW
Charge Power (10-80%)	185 kW
Charge Time DC (10-80%)	16 min
Charge Speed (mild)	940 km/h
Charge Speed (cold)	740 km/h
Autocharge Supported	Yes

Plug & Charge

Plug & Charge Supported	No
Supported Protocol	-

Preconditioning

Preconditioning Possible	Yes
Automatically using Navigation	Yes

Have questions about Charging?

Charging Times

Home / destination charging — 0–100%

AC full charge: fastest ~7h 15m

Charging option	Power used	Approx. time	Range per hour	Notes
Wall plug · 230V / 10A	2.3 kW	34h 35m	10 km/h	—
1-phase 16A · 230V / 16A	3.7 kW	21h 30m	17 km/h	—
1-phase 32A · 230V / 32A	7.4 kW	10h 45m	33 km/h	—
3-phase 16A · 400V / 3x16A	11 kW	7h 15m	49 km/h	—
3-phase 32A · 400V / 3x32A	11 kW	7h 15m	49 km/h	Limited by vehicle

Fast charging — 10–80%

Fastest DC 10–80%: ~16 min

Charging option	Power used	Approx. time	Range per hour	Notes
CCS 50 kWCCS connector	50 kW avg.	59 min	255 km/h	—
CCS 150 kWCCS connector	126 kW avg.	23 min	643 km/h	Limited by charger
CCS 350 kWCCS connector	185 kW avg.	16 min	944 km/h	Limited by vehicle

Estimated charging times are based on usable battery capacity, charging power and vehicle charging limits. Peak DC power is usually reached only briefly; average 10–80% power is more useful for estimating real charging time. Actual charging speed can vary by charger output, battery temperature, state of charge, weather, software and battery condition.

Performance

Acceleration	5.2 sec (0-100 km/h)
Top Speed	185 km/h
Total Power	225 kW (306 PS)
Total Torque	605 Nm
Drive	AWD

Have questions about Performance?

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L Supported	Yes
Max. Output Power	3.6 kW
Exterior Outlet(s)	1 x Type 2 (Adapter)
Interior Outlet(s)	1 x Standard Socket

Vehicle-to-Home (V2H)

V2H via AC Supported	No
Max. Output Power	-
V2H via DC Supported	No
Max. Output Power	-

Vehicle-to-Grid (V2G)

V2G via AC Supported	No
Max. Output Power	-
V2G via DC Supported	No
Max. Output Power	-

Have questions about Bidirectional Charging?

Energy Consumption

BEVDB model

Combined real range (estimate)	332 km
Combined Energy Use (estimate)	21 kWh/100 km

BEVDB estimates use WLTP-rated (or derived; falls back to NEDC when WLTP is missing) consumption and usable battery capacity to model city/highway ranges; the combined value is a weighted mix of city/highway and mild/cold scenarios. See the methodology and data sources for inputs, official source boundaries, fallback rules, and versioning.

WLTP Ratings (worst case)

Range	430 km
Rated Consumption	19 kWh/100 km

Have questions about Energy Consumption?

Safety (NCAP)

Safety Rating	5/5
Adult Occupant	88%
Child Occupant	86%
Rating Year	2021
Vulnerable Road Users	63%
Safety Assist	88%

Source: Euro NCAP

Have questions about Safety?

Dimensions and Weight

Length	4635 mm
Width	1890 mm
Width with Mirrors	2152 mm
Height	1605 mm
Wheelbase	3000 mm
Weight Unladen (EU)	2095 kg
Gross Vehicle Weight (GVWR)	2540 kg
Max. Payload	520 kg
Cargo Volume	531 L
Cargo Volume Max	1591 L
Cargo Volume Frunk	24 L
Roof Load	80 kg
Tow Hitch Possible	Yes
Towing Weight Unbraked	750 kg
Towing Weight Braked	1600 kg
Vertical Load Max	100 kg

Have questions about Dimensions and Weight?

Miscellaneous

Price	€59,550
Seats	5 people
Isofix	Yes, 2 seats
Turning Circle	12 m
Platform	HMG E-GMP
EV Dedicated Platform	Yes
Car Body	SUV
Roof Rails	No
Heat Pump	Yes
HP Standard Equipment	Yes

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions. Review the BEVDB methodology for estimate boundaries and source labels. If this model page looks wrong, use Contact and include this page URL plus an official source link when possible.
