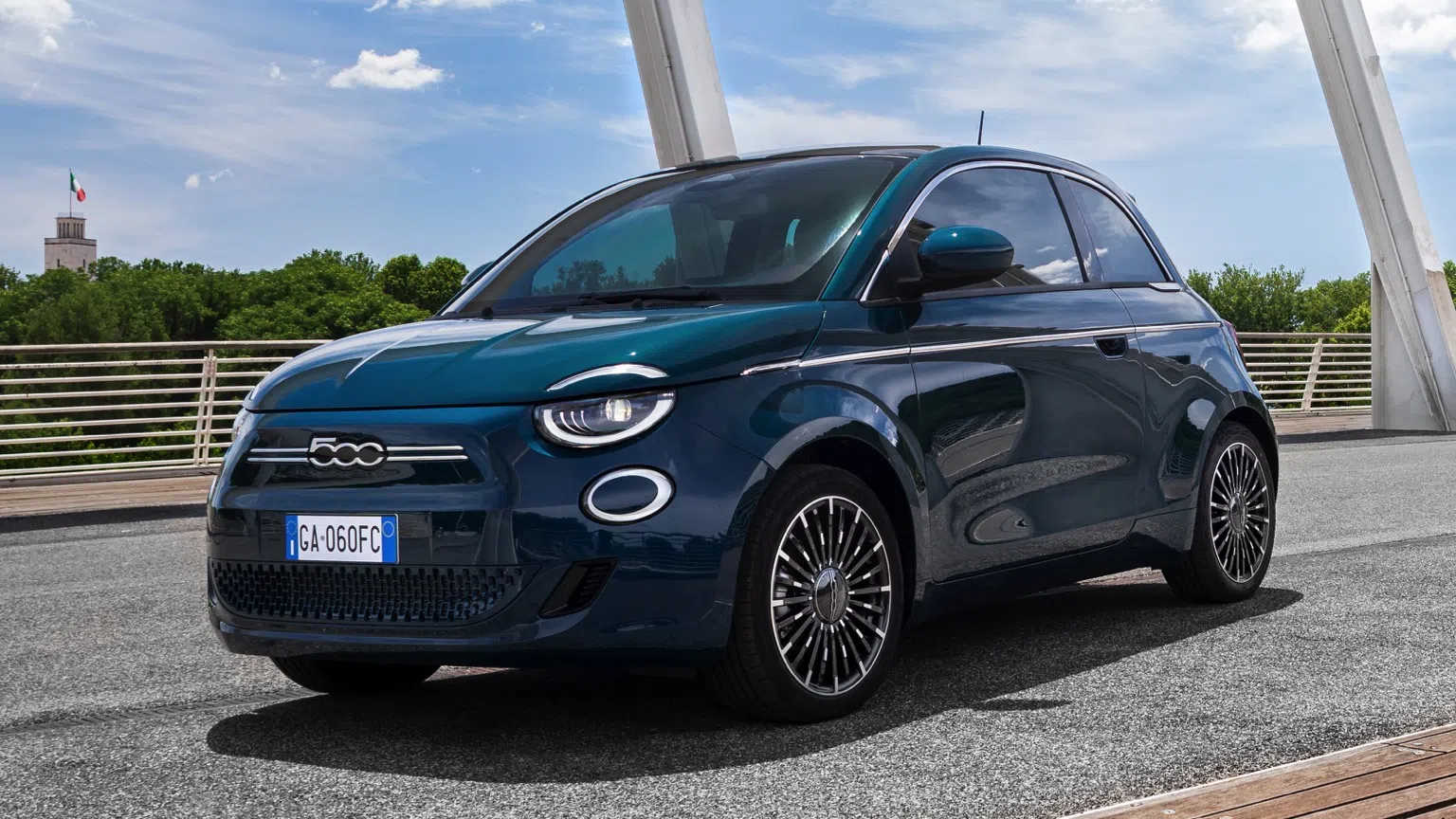

Fiat 500e Hatchback 24 kWh 2020

Usable battery
21.3 kWh
Nominal battery
23.8 kWh
Drive
FWD
Real range (combined)
158 km
AC charging
11 kW
DC fast charging
50 kW

Ownership insights

Commute: 158 km real-world range | easy overnight home charging

Road-trip (10-80%): 20 min | +64 km in 10 min | peak 50 kW

Home charging (AC): 11 kW | 0-100% 2 h 10 min

Seats & cargo: 4 seats | 185 L | max 550 L

Overview

Fiat 500e Hatchback 24 kWh 2020 overview

Fiat 500e Hatchback 24 kWh 2020 comes as an electric hatchback with FWD and 4 seats. Best suited to shorter legs between stops (190 km, well below the class median of 330 km).

Battery: 21.3 kWh usable (23.8 kWh nominal).

Charging includes AC charging up to 11 kW (Type 2); DC fast charging up to 50 kW (CCS Combo 2). For DC fast charging, it adds ~64 km in 10 min; Heat pump: No.

Class comparison

Within a group of 152 hatchbacks, Fiat 500e Hatchback 24 kWh 2020 leans toward a smaller usable battery and less cargo space. Usable battery capacity is below the class median; 21.3 kWh vs 45.4 kWh; 24.1 kWh lower, -53%. Cargo volume is below the class median; 185 L vs 326 L; 141 L lower, -43%. WLTP range is below the class median; 190 km vs 330 km; 140 km lower, -42%. Worth considering if you can live with a smaller usable battery and less cargo room.

Real Range

City - Mild Weather	170 km
City - Cold Weather	152 km
Highway - Mild Weather	144 km
Highway - Cold Weather	111 km

Real range estimates The values shown here are estimates calculated by BEV-Database using WLTP data and the usable battery capacity of the car. Mild weather represents driving in roughly +20 +25 C without heavy use of climate control, while Cold weather reflects winter conditions with cabin heating. Highway assumes steady cruising at about 110 km/h. These figures are not official test results. Real-world range will vary depending on speed, temperature, traffic, road profile, payload, tyres and driving style.

Have questions?

Battery

Nominal Capacity	23.8 kWh
Usable Capacity	21.3 kWh
Battery Type	Lithium-ion
Architecture	400 V
Warranty Period	No Data
Warranty Mileage	No Data
Cathode Material	No Data

Source: Manufacturer

Have questions?

Charging

Home / Destination

Charging Type	Type 2
Port Location	Rear Right
Charge Power	11 kW
Charge Time AC (0-100%)	2 h 10 min
Charge Speed (mild)	80 km/h
Charge Speed (cold)	60 km/h

Fast Charging

Fast Charging Port	CCS Combo 2
Port Location	Rear Right
Charge Power (max)	50 kW
Charge Power (10-80%)	40 kW
Charge Time DC (10-80%)	20 min
Charge Speed (mild)	330 km/h
Charge Speed (cold)	240 km/h
Autocharge Supported	Yes

Plug & Charge

Plug & Charge Supported	No
Supported Protocol	-

Preconditioning

Preconditioning Possible	No
Automatically using Navigation	No

Have questions?

Performance

Acceleration	9 sec (0-100 km/h)
Top Speed	135 km/h
Total Power	70 kW (95 PS)
Total Torque	220 Nm
Consumption	13 kWh/100 km
Drive	FWD

Have questions?

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L Supported	No
Max. Output Power	-
Exterior Outlet(s)	-
Interior Outlet(s)	-

Vehicle-to-Home (V2H)

V2H via AC Supported	No
Max. Output Power	-
V2H via DC Supported	No
Max. Output Power	-

Vehicle-to-Grid (V2G)

V2G via AC Supported	No
Max. Output Power	-
V2G via DC Supported	No
Max. Output Power	-

Have questions?

Energy Consumption

BEVDB model

Combined real range (estimate)	158 km
Combined Energy Use (estimate)	13 kWh/100 km

BEVDB estimates use WLTP-rated (or derived) consumption and usable battery capacity to model city/highway ranges; the combined value averages the four scenarios.

WLTP Ratings (worst case)

Range	190 km
Rated Consumption	13 kWh/100 km

Have questions?

Safety (NCAP)

Safety Rating	4/5
Adult Occupant	76%
Child Occupant	80%
Rating Year	2021
Vulnerable Road Users	67%
Safety Assist	67%

Source: Euro NCAP

Have questions?

Dimensions and Weight

Length	3631 mm
Width	1683 mm
Width with Mirrors	1900 mm
Height	1529 mm
Wheelbase	2322 mm
Weight Unladen (EU)	1255 kg
Gross Vehicle Weight (GVWR)	1560 kg
Max. Payload	380 kg
Cargo Volume	185 L
Cargo Volume Max	550 L
Cargo Volume Frunk	0 L
Roof Load	No Data
Tow Hitch Possible	No
Towing Weight Unbraked	0 kg
Towing Weight Braked	0 kg
Vertical Load Max	0 kg

Have questions?

Miscellaneous

Seats	4 people
Isofix	No Data
Turning Circle	9.7 m
Platform	No Data
EV Dedicated Platform	No Data
Car Body	Hatchback
Roof Rails	No
Heat Pump	No
HP Standard Equipment	-

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions.
