Nissan Leaf 24 kWh 2013

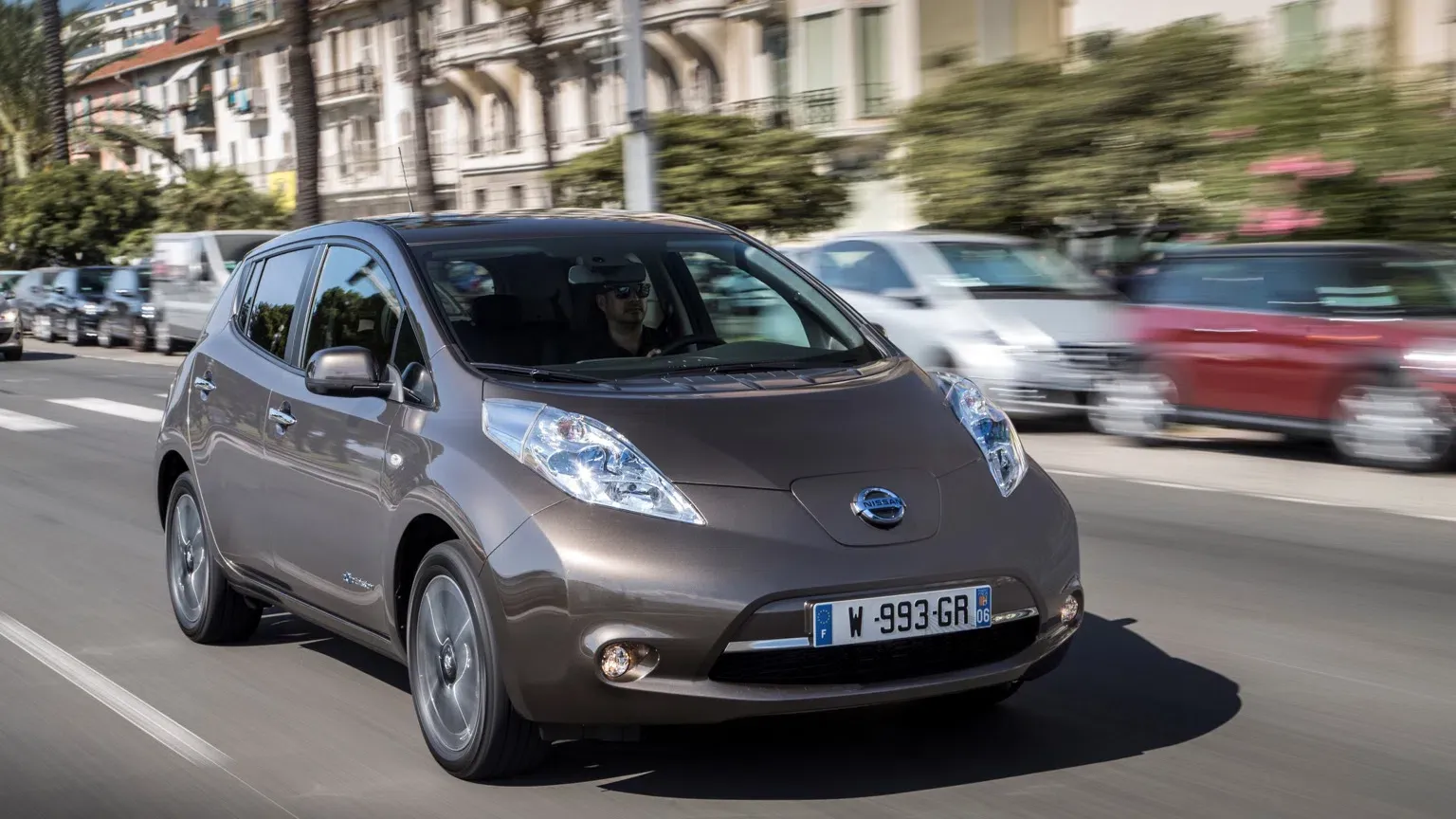

Nissan Leaf 24 kWh 2013 image 1

Ownership insights

Commute: 83 mi real-world range | typical overnight home charging

Road-trip (10-80%): 25 min (est.) | +28 mi in 10 min | peak 46 kW

Home charging (AC): 3.3 kW | 0-100% 7 h 35 min

Seats & cargo: 5 seats | 13.1 cu ft | max 24 cu ft

Battery warranty: 5 years / 65,000 miles

Overview

Nissan Leaf 24 kWh 2013 overview

Nissan Leaf 24 kWh 2013 is an electric hatchback with FWD and seating for 5. 0–60 mph is more relaxed: 11.5 s, well above the class median of 7.3 s.

Usable capacity is 22 kWh, with 24 kWh nominal. It is based on a 400 V electrical system.

Charging: AC up to 3.3 kW (J1772); DC up to 46 kW (CHAdeMO). For a typical DC stop, it adds ~28 mi in 10 min; Performance highlights include 89 mph top speed.

Class comparison

Among 34 hatchbacks, Nissan Leaf 24 kWh 2013 stands out for slower acceleration and shorter range. 0-60 mph is slower than the class median; 11.5 s vs 7.3 s; 4.2 s slower, +58%. Rated range is below the class median; 84 mi vs 136 mi; 52 mi lower, -38%. Usable battery capacity is below the class median; 22 kWh vs 34.6 kWh; 12.7 kWh lower, -37%. Works best if you're comfortable with a smaller usable battery.

City - Mild Weather109.4 miles
City - Cold Weather80 miles
Highway - Mild Weather75 miles
Highway - Cold Weather58 miles

Real range estimates The values shown here are estimates calculated by BEV-Database using EPA range/efficiency data (where available) and the usable battery capacity of the car. “Mild weather" represents driving in roughly 68-77 °F without heavy use of climate control, while "Cold weather" reflects winter conditions with the cabin heater on (around 14 °F). "Highway" figures assume steady cruising at about 65 mph-70 mph. These figures are not official test results or guarantees. Real-world range will vary depending on speed, temperature, traffic, road profile, payload, tires and driving style.

Have questions?
Nominal Capacity24 kWh
Usable Capacity22 kWh
Battery TypeLithium-ion
Architecture400 V
Warranty Period5 years
Warranty Mileage65000 miles
Cathode MaterialNo Data

Source: Manufacturer

Have questions?

Home / Destination

Charging TypeJ1772J1772 icon
Port LocationFront Center
Charge Power3.3 kW
Charge Time AC (0-100%)7 h 35 min
Charge Speed (mild)10 miles/hour
Charge Speed (cold)10 miles/hour

Fast Charging

Fast Charging PortCHAdeMOCHAdeMO icon
Port LocationFront Center
Charge Power (max)46 kW
Charge Power (10-80%)36 kW
Charge Time DC (10-80%)25 min
Charge Speed (mild)150 miles/hour
Charge Speed (cold)110 miles/hour
Autocharge SupportedNo

Plug & Charge

Plug & Charge SupportedNo
Supported ProtocolNo Data

Preconditioning

Preconditioning PossibleNo
Automatically using NavigationNo
Have questions?
Acceleration11.5 sec (0-60 mph)
Top Speed89 mph
Total Power80 kW (109 PS)
Total Torque187.3 lb-ft
Consumption27 kWh/100 mi
DriveFWD
Have questions?

Vehicle-to-Load (V2L)

V2L SupportedNo
Max. Output Power-
Exterior Outlet(s)-
Interior Outlet(s)-

Vehicle-to-Home (V2H)

V2H via AC SupportedNo
Max. Output Power-
V2H via DC SupportedYes
Max. Output Power7 kW

Vehicle-to-Grid (V2G)

V2G via AC SupportedNo
Max. Output Power-
V2G via DC SupportedYes
Max. Output Power7 kW
Have questions?

BEVDB model

Combined real range (estimate)82.6 miles
Combined Energy Use (estimate)27 kWh/100 mi

BEVDB estimates use EPA-rated (or derived) consumption and usable battery capacity to model city/highway ranges; the combined value averages the four scenarios.

EPA

EPA Range84 mi
MPGe City129 MPGe
MPGe Highway102 MPGe
MPGe Combined115 MPGe
Energy Use27 kWh/100 mi

Source: EPA

Have questions?
Side crash:4 stars
Front crash:4 stars
Rollover resistance:4 stars
Safety rating:4 stars
Rating year:2013

Source: NHTSA

Have questions?
Length175 in
Width69.7 in
Width with MirrorsNo Data
Height61 in
Wheelbase106.3 in
Weight3318 lbs
Gross Vehicle Weight (GVWR)4288 lbs
Max. Payload1135.4 lbs
Cargo Volume13.1 ft³
Cargo Volume Max24 ft³
Cargo Volume FrunkNo Data
Roof LoadNo Data
Tow Hitch PossibleNo Data
Towing Weight UnbrakedNo Data
Towing Weight BrakedNo Data
Vertical Load MaxNo Data
Have questions?
Seats5
LATCHNo Data
Turning Circle34.1 ft
PlatformNo Data
EV Dedicated PlatformNo Data
Car BodyHatchback
Roof RailsNo Data
Heat PumpNo Data
HP Standard EquipmentNo Data

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions.
