GMC Sierra EV 4WD Extended Range Denali 2025

Starting price: $89,900

SpecificationRoad PlannerMoney EconomyGarage Planner

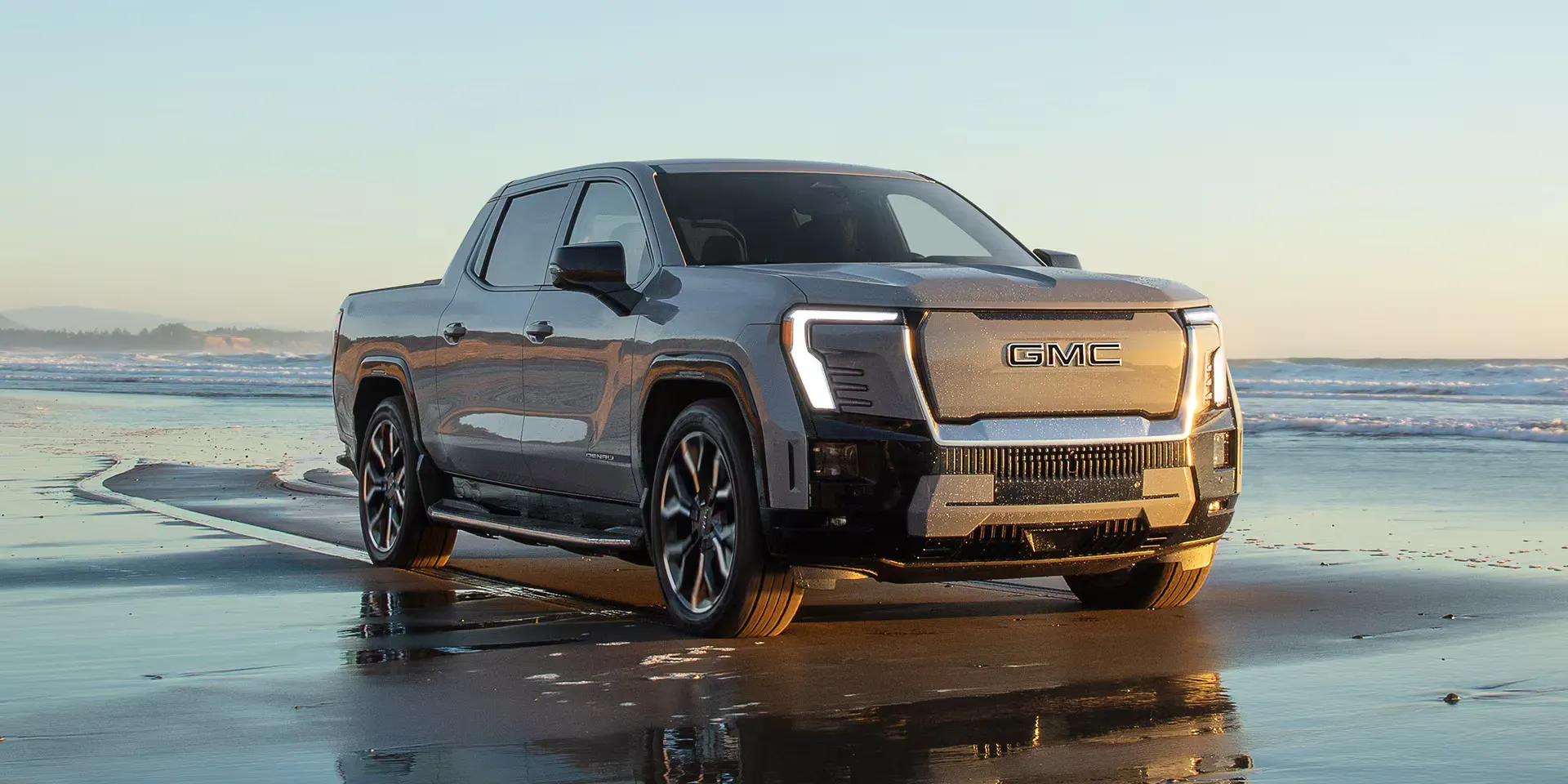

GMC Sierra EV 4WD Extended Range Denali 2025 image 1

Ownership insights

Commute: 302 mi real-world range | longer home charging sessions

Road-trip (10-80%): 30 min (est.) | +134 mi in 10 min | peak 350 kW

Home charging (AC): 19.2 kW | 0-100% 10 h 5 min

Seats & cargo: 5 seats

Battery warranty: 8 years / 100,000 miles

Overview

GMC Sierra EV 4WD Extended Range Denali 2025 overview

Official EPA range is 390 mi, with 170 kWh usable battery, DC up to 350 kW (CCS Combo 1) and typical 10-80% stops near 28 min (est.). GMC Sierra EV 4WD Extended Range Denali 2025 is an electric pickup truck with AWD and 5 seats.

A 10-minute DC top-up (est.) adds 134 miles. Combined efficiency is 64 MPGe, or about 52.4 kWh/100 mi.

Practical for towing runs where range drops and frequent fast-charge stops matter. It uses an 800 V architecture.

City - Mild Weather362 miles
City - Cold Weather272 miles
Highway - Mild Weather286 miles
Highway - Cold Weather235 miles

Estimates of actual range. The values given here are BEVDB estimates calculated from EPA data and usable battery capacity, based on the BEVDB model. The BEVDB real-range card uses four fixed reference scenarios: City (Mild), Highway (Mild), City (Cold), and Highway (Cold). Mild means +20°C (70°F) without intensive climate-control use; cold means -10°C (14°F) with cabin heating. City speed is 50 km/h (30 mph), and highway speed is 110 km/h (70 mph). These figures are not official test results. Actual range will vary depending on speed, temperature, road conditions, road profile, load, tires, and driving style.

Have questions about Real Range?
Nominal Capacity178 kWh
Usable Capacity170 kWh
Battery TypeLithium-ion
Architecture800 V
Warranty Period8 years
Warranty Mileage100000 miles
Cathode MaterialNo Data

Source: Manufacturer

Have questions about Battery?

Home / Destination

Charging TypeJ1772J1772 icon
Port LocationRear Left
Charge Power19.2 kW
Charge Time AC (0-100%)10 h 5 min
Charge Speed (mild)20 miles/hour
Charge Speed (cold)20 miles/hour

Fast Charging

Fast Charging PortCCS Combo 1CCS Combo 1 icon
Port LocationRear Left
Charge Power (max)350 kW
Charge Power (10-80%)251 kW
Charge Time DC (10-80%)28 min
Charge Speed (mild)310 miles/hour
Charge Speed (cold)250 miles/hour
Autocharge SupportedNo Data

Plug & Charge

Plug & Charge SupportedYes
Supported ProtocolNo Data

Preconditioning

Preconditioning PossibleYes
Automatically using NavigationNo Data
Have questions about Charging?

Home / destination charging — 0–100%

AC full charge: fastest ~10h 5m
Charging optionPower usedApprox. timeRange per hourNotes
Level 1 · 120V / 12A1.4 kW138h2 mi/h—
Level 1 · 120V / 16A1.9 kW101h 40m2 mi/h—
Level 2 · 240V / 32A7.7 kW25h 5m8 mi/h—
Level 2 · 240V / 40A9.6 kW20h 5m10 mi/h—
Level 2 · 240V / 48A11.5 kW16h 50m12 mi/h—
Level 2 · 240V / 80A19.2 kW10h 5m21 mi/h—

Fast charging — 10–80%

Fastest DC 10–80%: ~28 min
Charging optionPower usedApprox. timeRange per hourNotes
DC 50 kWCCS connector50 kW avg.2h 25m62 mi/h—
DC 150 kWCCS connector126 kW avg.57 min155 mi/hLimited by charger
DC 250+ kWCCS connector165 kW avg.43 min204 mi/hLimited by charger
DC 350 kWCCS connector251 kW avg.28 min309 mi/h—

Fast-charging times may use BEVDB estimates when measured 10–80% data is unavailable. Lower-power charger scenarios are estimated from the vehicle's 10–80% charging profile.

Estimated charging times are based on usable battery capacity, charging power and vehicle charging limits. Peak DC power is usually reached only briefly; average 10–80% power is more useful for estimating real charging time. Actual charging speed can vary by charger output, battery temperature, state of charge, weather, software and battery condition.

AccelerationNo Data
Top SpeedNo Data
Total Power760 hp
Total Torque785 lb-ft
EPA Consumption52.4 kWh/100 mi
DriveAWD
Have questions about Performance?

Vehicle-to-Load (V2L)

V2L SupportedYes
Max. Output Power10.2 kW
Exterior Outlet(s)No Data
Interior Outlet(s)No Data

Vehicle-to-Home (V2H)

V2H via AC SupportedYes
Max. Output Power10.2 kW
V2H via DC SupportedNo Data
Max. Output PowerNo Data

Vehicle-to-Grid (V2G)

V2G via AC SupportedNo Data
Max. Output PowerNo Data
V2G via DC SupportedNo Data
Max. Output PowerNo Data
Have questions about Bidirectional Charging?

BEVDB model

Combined real range (estimate)302 miles
Combined Energy Use (estimate)55.9 kWh/100 mi

BEVDB estimates use EPA-rated (or derived) consumption and usable battery capacity to model city/highway ranges; the combined value is a weighted mix of city/highway and mild/cold scenarios. See the methodology and data sources for inputs, official source boundaries, fallback rules, and versioning.

EPA

EPA Range390 mi
MPGe City70 MPGe
MPGe Highway59 MPGe
MPGe Combined64 MPGe
Energy Use52.4 kWh/100 mi

Source: EPA

Have questions about Energy Consumption?
Side crash:No Data
Front crash:5 stars
Rollover resistance:4 stars
Safety rating:No Data
Rating year:2025

Source: NHTSA

Have questions about Safety?
Length233.4 in
Width83.8 in
Width with Mirrors95.7 in
Height79.9 in
Wheelbase145.7 in
WeightNo Data
Gross Vehicle Weight (GVWR)9990 lbs
Max. Payload1500 lbs
Cargo VolumeNo Data
Cargo Volume MaxNo Data
Cargo Volume FrunkNo Data
Roof LoadNo Data
Tow Hitch PossibleYes
Towing Weight UnbrakedNo Data
Towing Weight Braked10500 lbs
Vertical Load MaxNo Data
Have questions about Dimensions and Weight?
Price$89,900
Seats5
LATCHYes
Turning CircleNo Data
PlatformBT1
EV Dedicated PlatformYes
Car BodyPickup
Roof RailsNo
Heat PumpNo Data
HP Standard EquipmentNo Data

Reminder: Range and energy consumption figures are estimates. Actual results may vary depending on weather, driving style, terrain, and other conditions. Review the BEVDB methodology for estimate boundaries and source labels. If this model page looks wrong, use Contact and include this page URL plus an official source link when possible.
